Knife blade roller WN TANDEM

Cutting blades high-grade steel

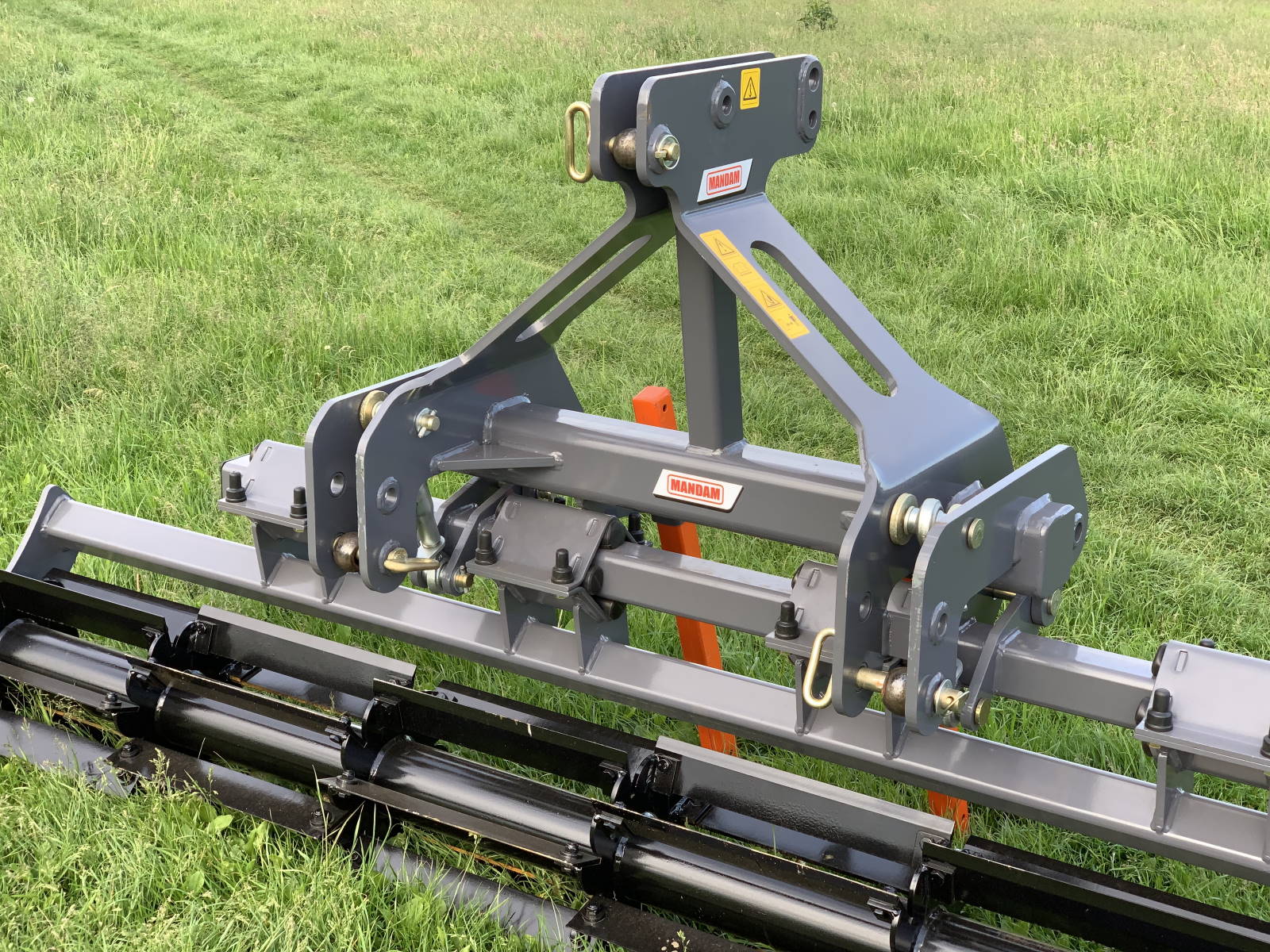

3-point hitch front and back (WN 3,0 – 4,0)

Knife roller

Description

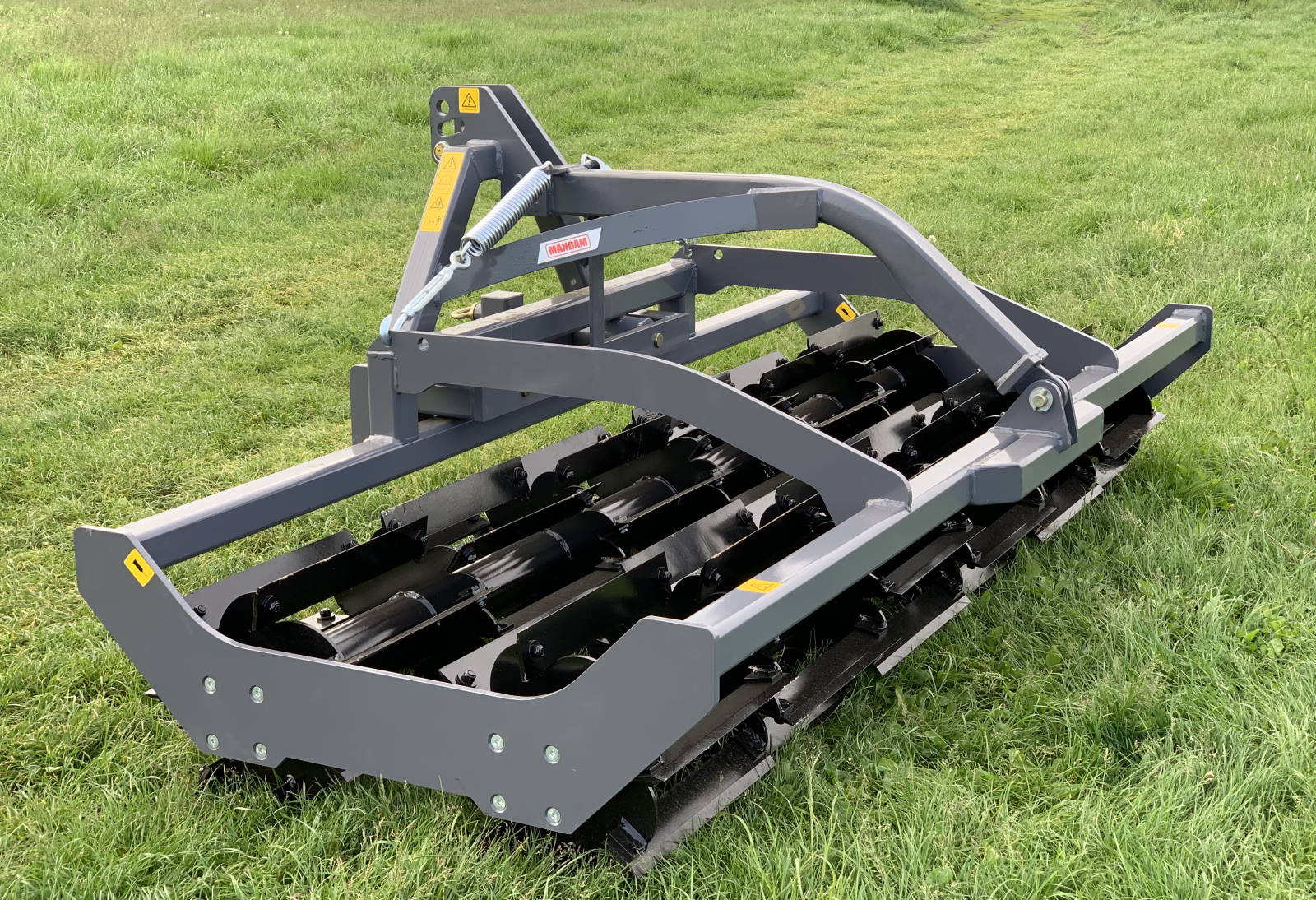

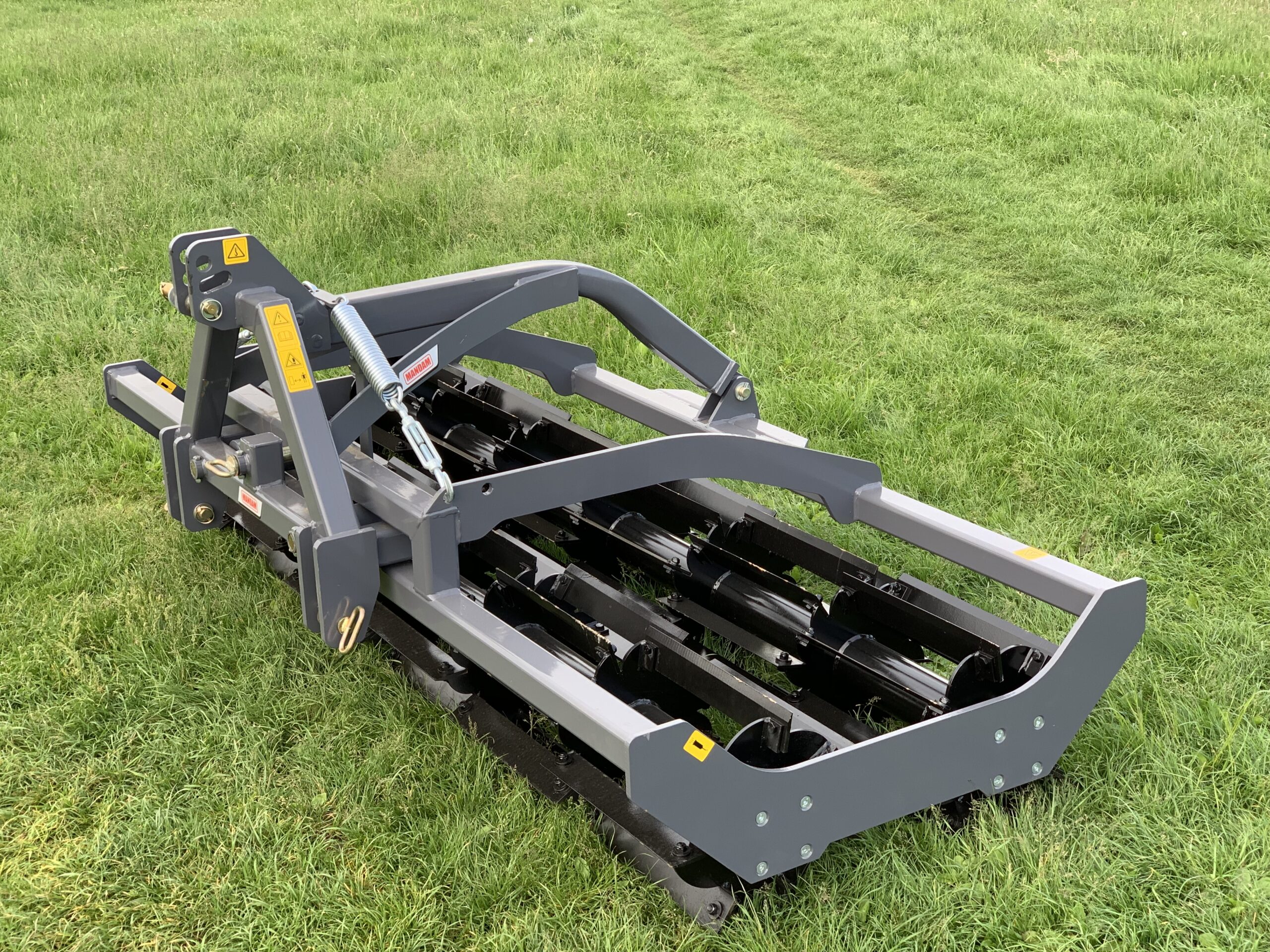

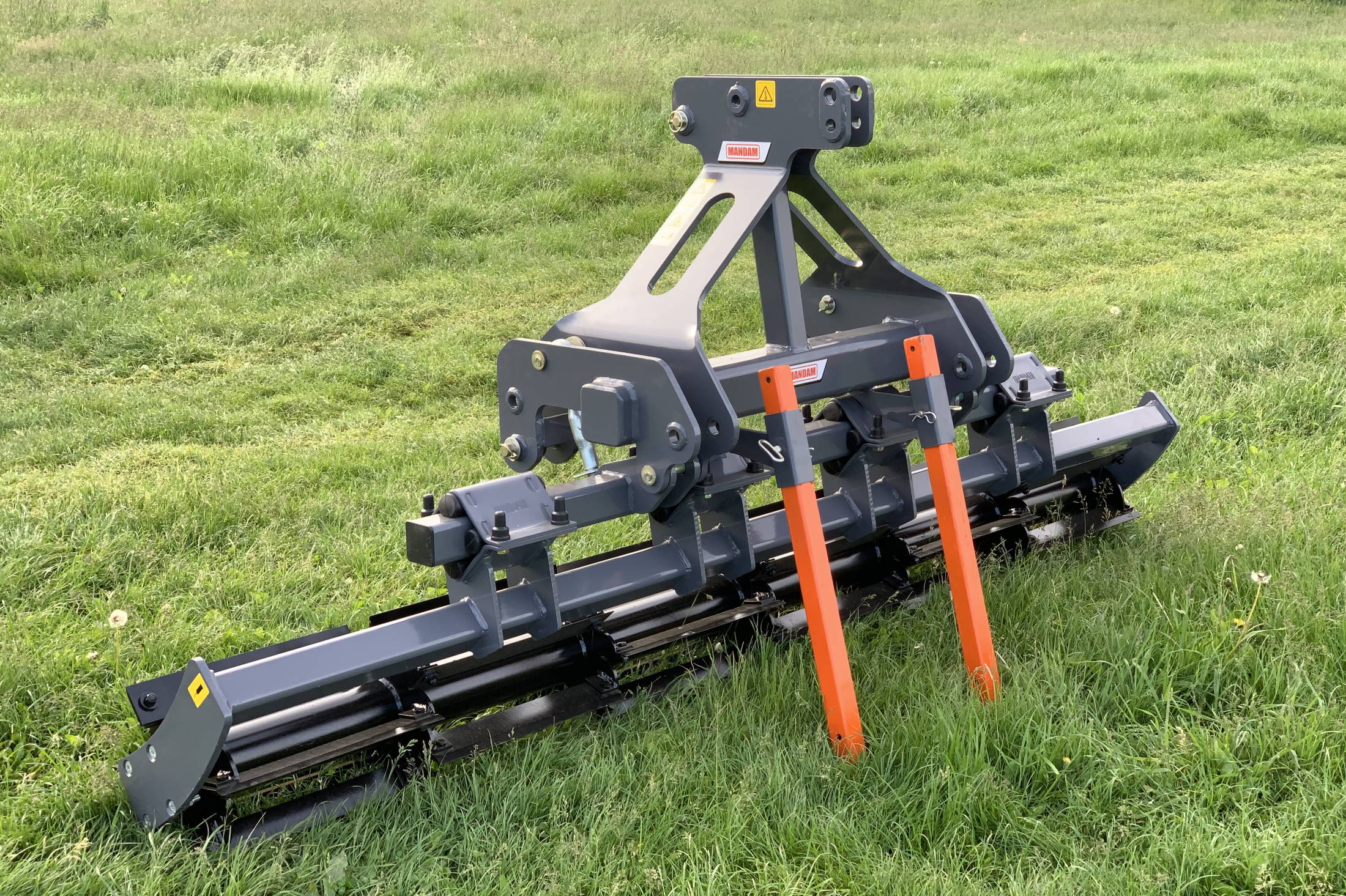

WN TANDEM KNIFE ROLLER is a machine designed for intensive shredding of plant material (straw, crop residues, stubble, catch crops) along with crushing and partial covering. This accelerates the decomposition of residues, which facilitates further work on crops.

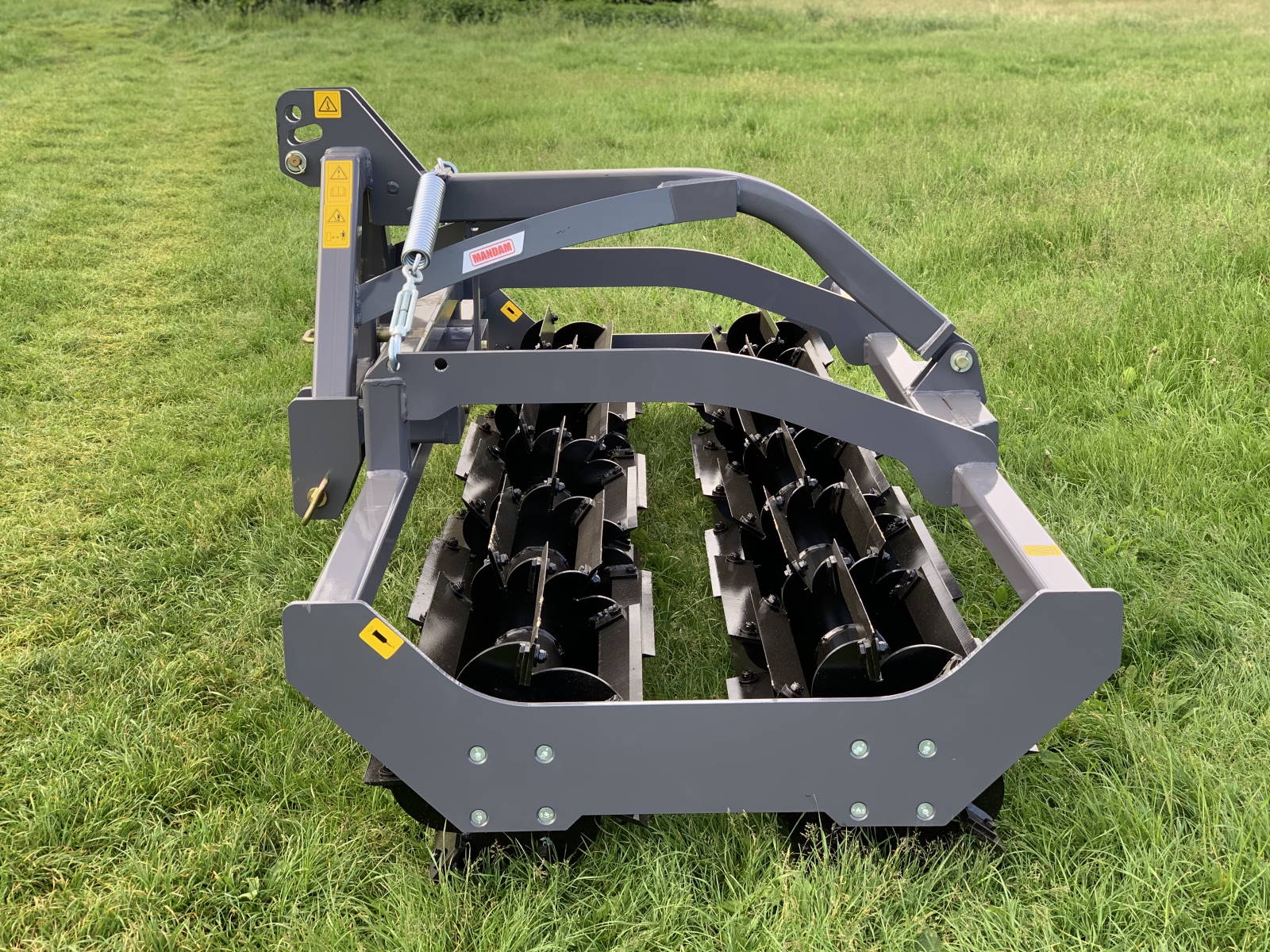

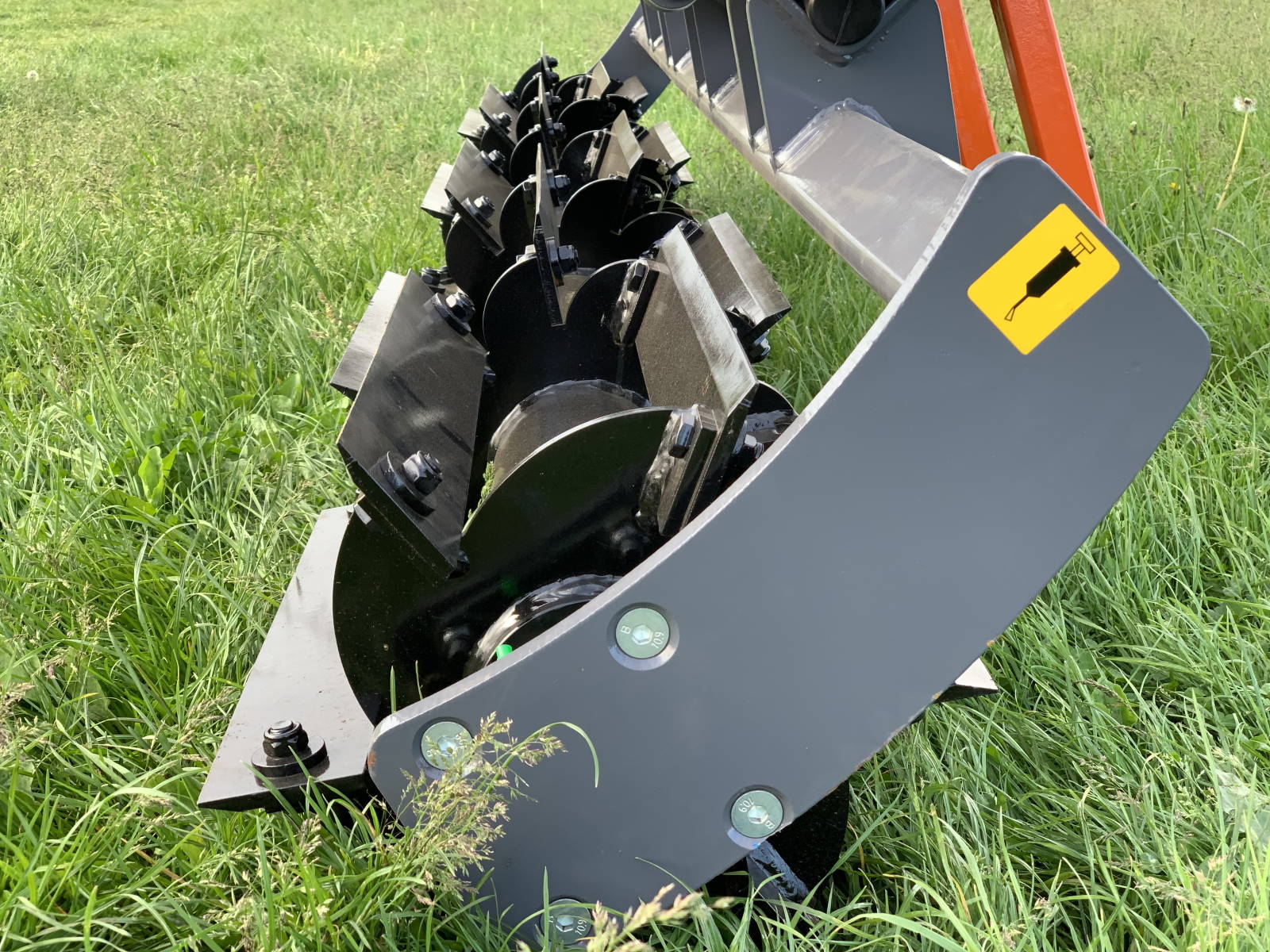

The working depth of the machine is 2-3 cm (knife recess). The working tool of the tandem knife roller is a straight or special knife made of HARDOX steel. The knives are installed on two ø460 mm rollers with a different number of rows, thanks to which the cutting marks of the cooperating rollers do not overlap.
The working speed and low resistance of the roller allow for high efficiency, while maintaining low fuel consumption.

Technical data

#Typ
mpcsmmHPkg
5800WN 3,03,0-638030525
5825WN 3,53,5-638035644
5805WN 4,04,0-638040920
5810WN 4,0H4,0+638040940
5815WN 5,0H5,0+6380501085
5820WN 6,0H6,0+6380601140
#Typ
mpcsmmHPkg
6700WN Tandem 3,03,0-8+7
46060875
6725WN Tandem 3,53,5-8+7
46065935
6705WN Tandem 4,04,0-8+7
460801105
6710WN Tandem 4,0H4,0+8+7
460801420
6715WN Tandem 5,0H5,0+8+7
4601001605
6720WN Tandem 6,0H6,0+8+7
4601201815

Optional accesories

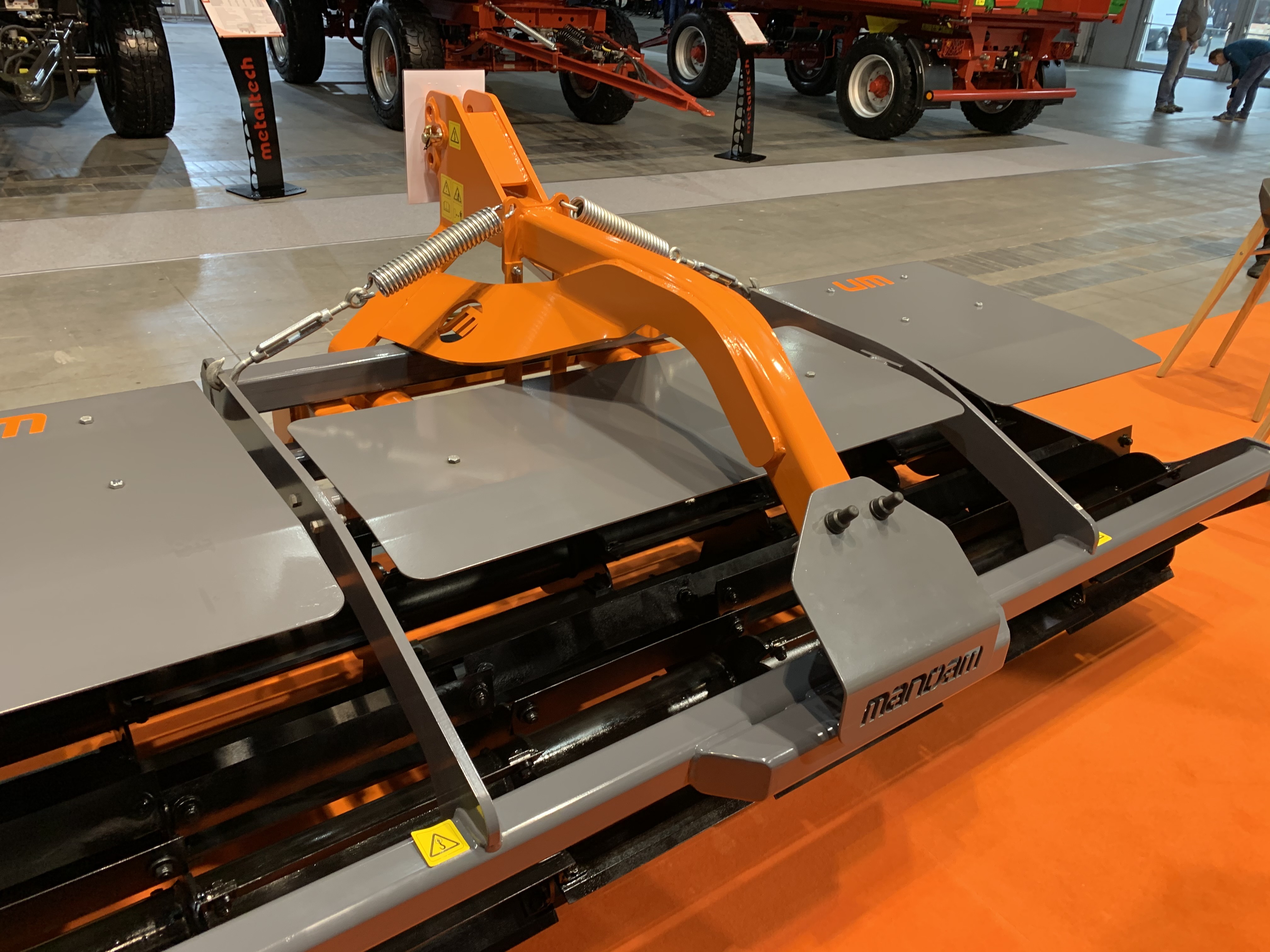

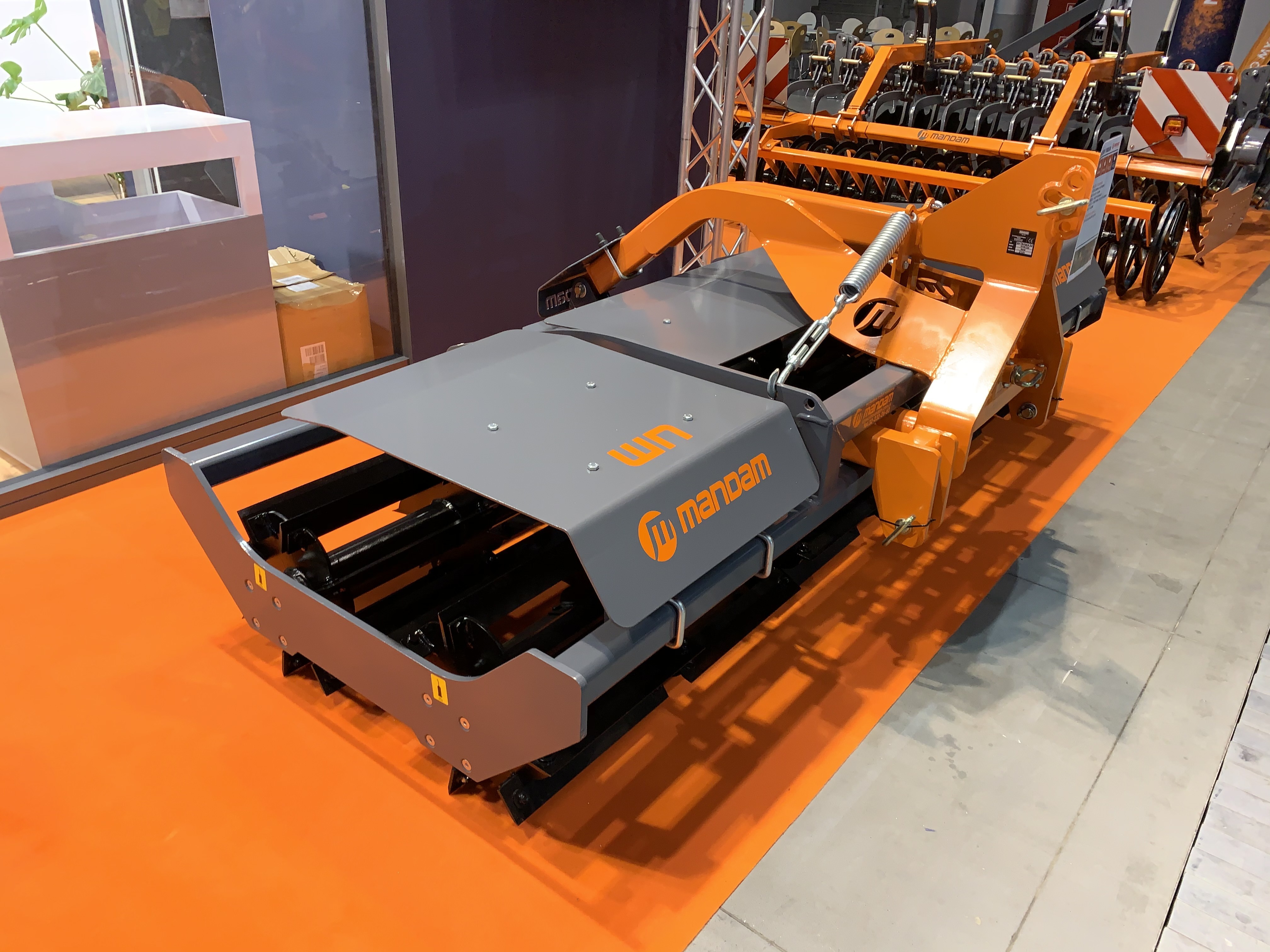

Top stone cover plates
Special hat treated knives
LED lights
