Description
These subsoilers are designed for deep soil opening without opening its layer. They enable better moistening and and drainage in the surface layer of the soil. Available roller (MGW) provides better working depth control, while optional moles, improve field drainage.
-
Technical data
# Typ
m pcs HP kg 2545 MG 1 1000 1,0 - 1 60 272 2500 MG 2 1500 1,5 - 2 80 463 2535 MG 2 1600 1,6 - 2 80 416 2505 MG 2 1800 1,8 - 2 80 470 2510 MG 2 2000 2,0 - 2 80 442 2515 MG 2 2200 2,2 - 2 80 495 2520 MG 3 1800 1,8 - 3 120 585 2525 MG 3 2000 2,0 - 3 120 595 2530 MG 4 3000 3,0 - 4 160 775 2540 MG 5 3000 3,0 - 5 200 870 -
Optional accesories
- Drain weight with a chain (pc)
- X tine with wide share point 190 mm
- Narrow share point 105 mm (pc)
- Narrow hardened share point 105 mm (pc)
- Wide hardened share point 190 mm (pc)
- Narrow share point (pc)
- Tubular roller Ø 540 mm *
- Tubular roller Ø 620 mm *
- T-ring roller Ø 600 mm *
- V-ring roller Ø 600 mm
- V-ring roller with paddles Ø 600 mm
- C-ring roller Ø 600 mm
- LED lights

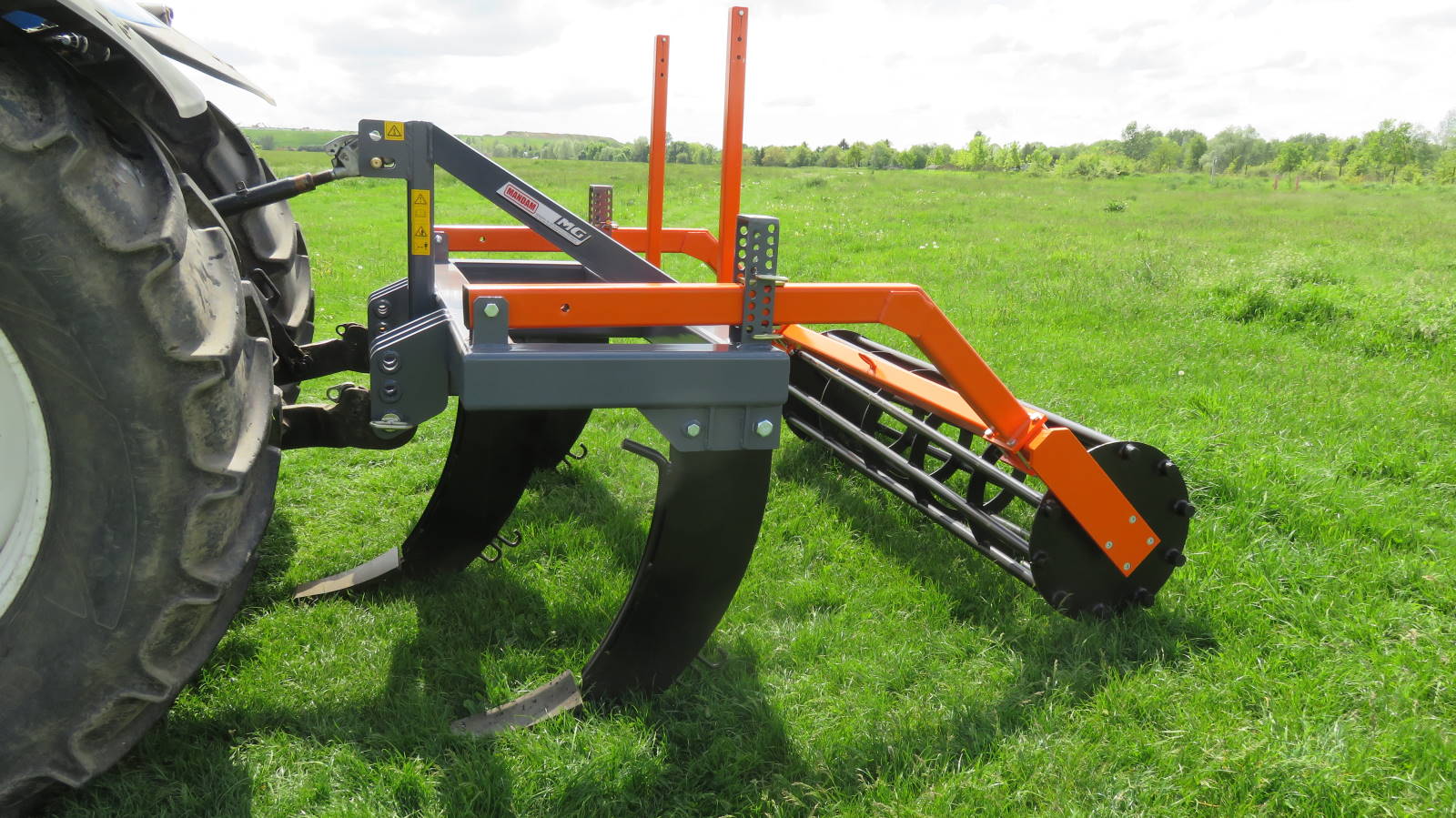

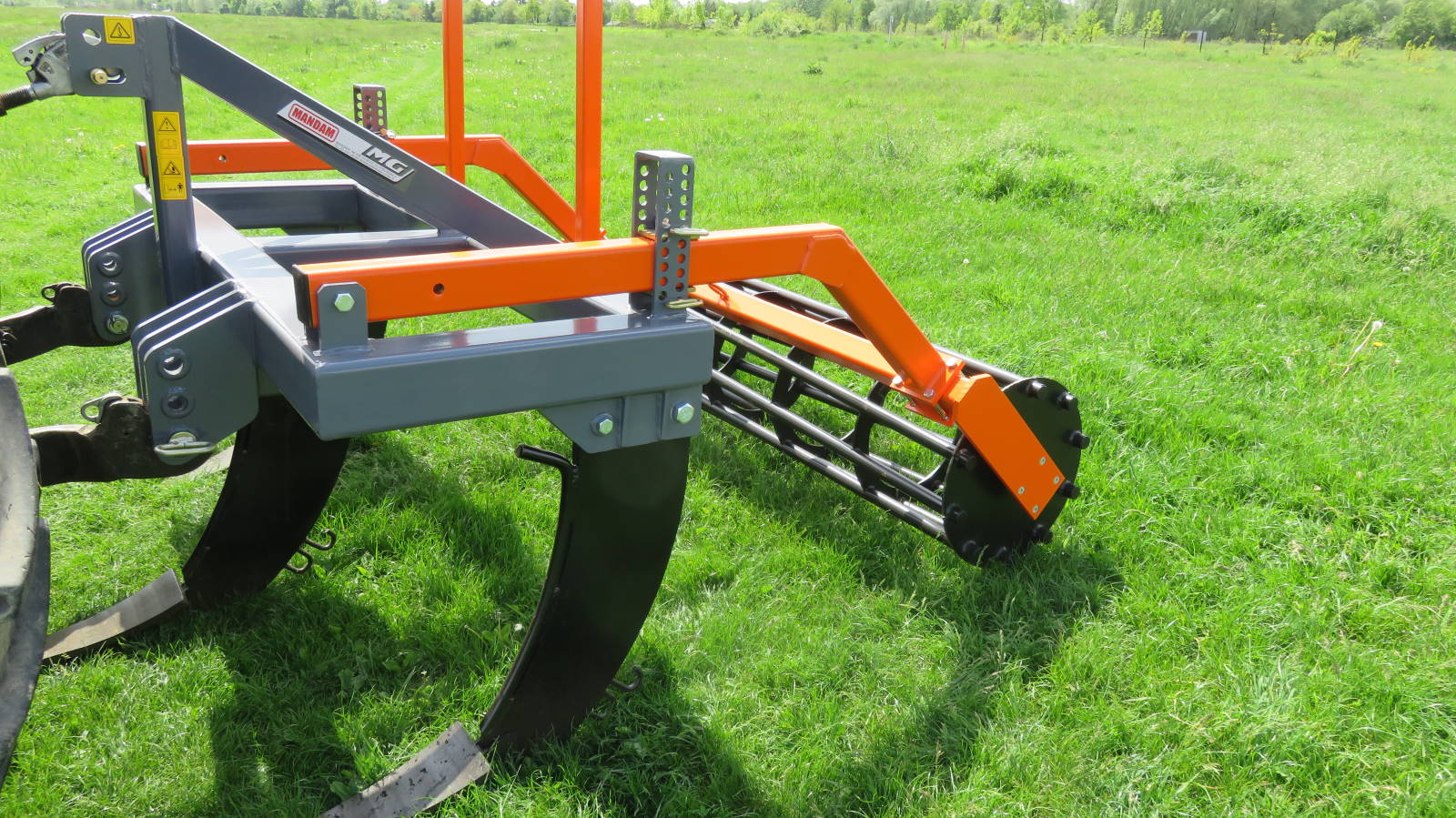

Subsoiler MG
