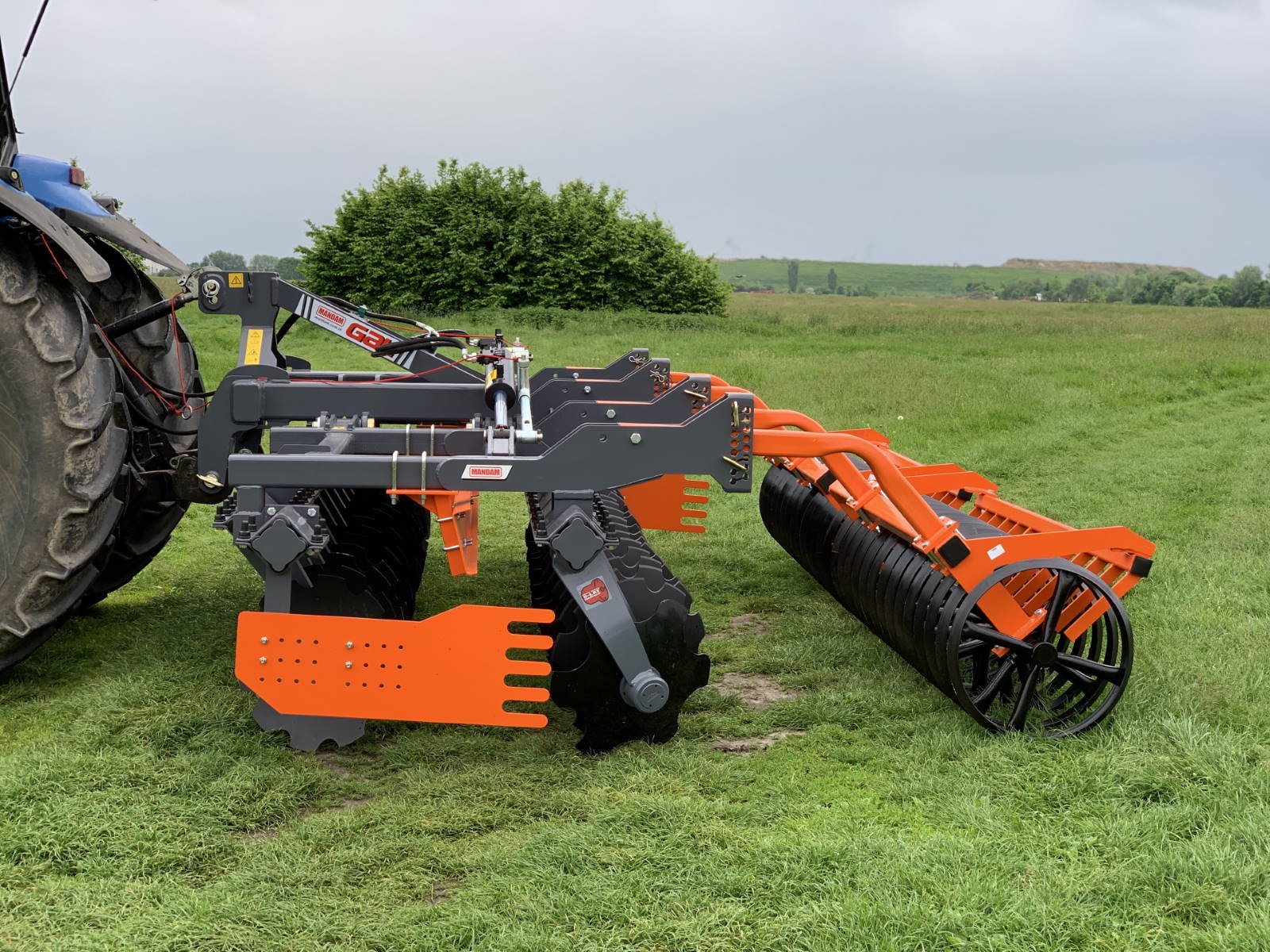

Disk Harrow GAL-C

Middle screan (OPTION)

Rubber shock absorbers

Discs Ø560mm

Side screans

Maintenance-free bearings 5-years warranty

V-ring roller (OPTION)

  • Middle screan (OPTION)

  • Rubber shock absorbers

  • Discs Ø560mm

  • Side screans

  • Maintenance-free bearings 5-years warranty

  • V-ring roller (OPTION)

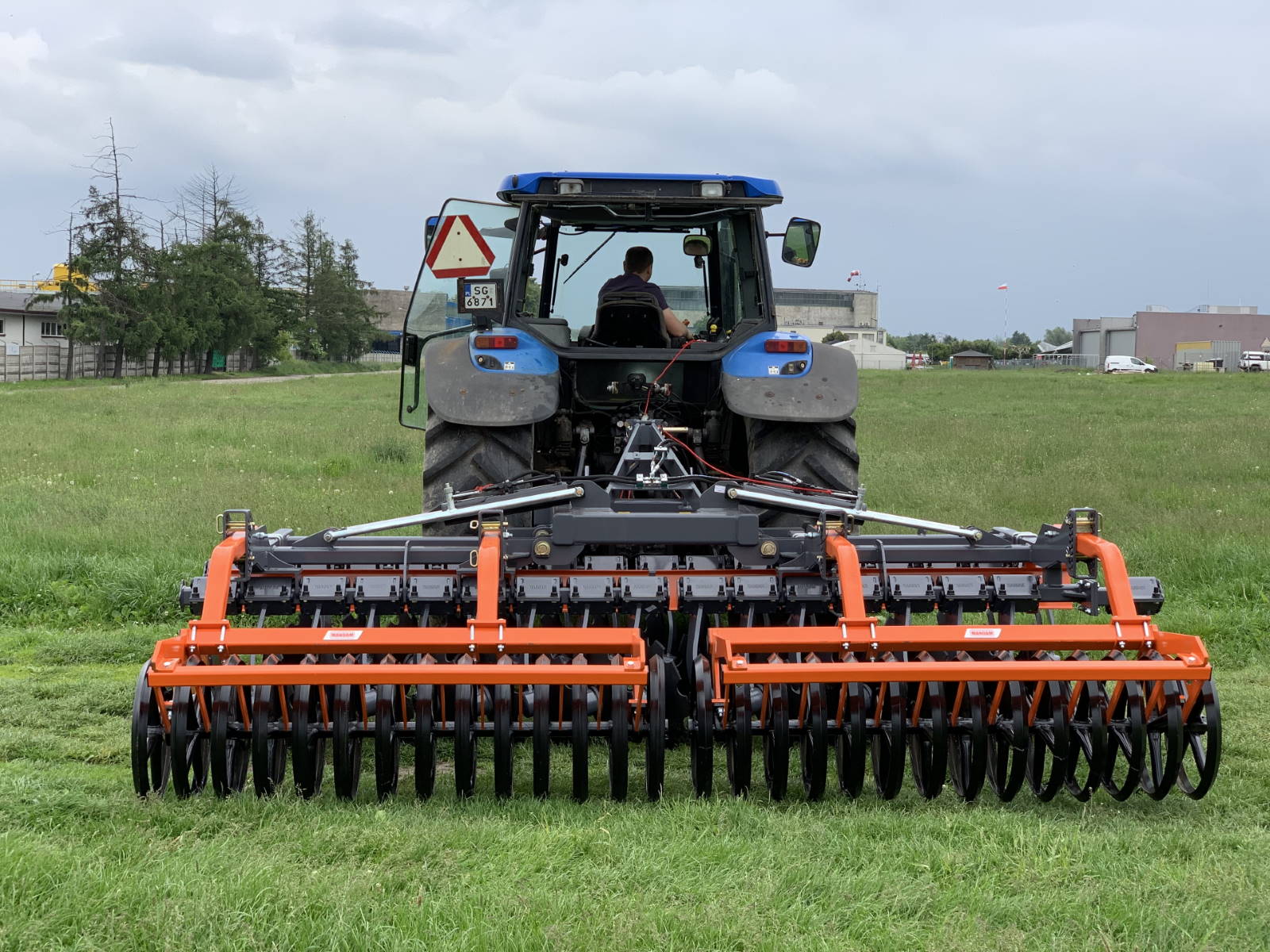

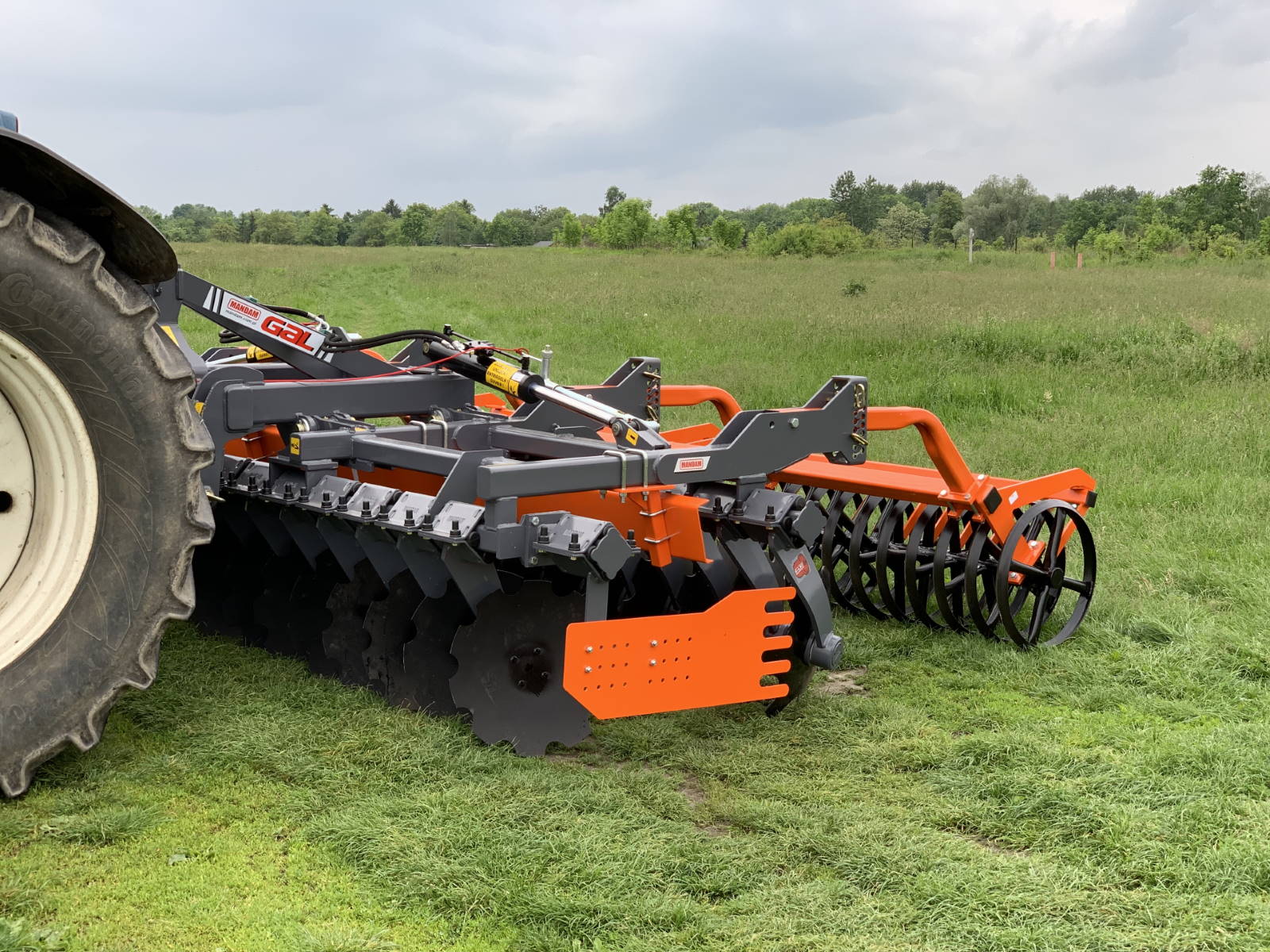

Disk Harrow GAL-C

  • Description

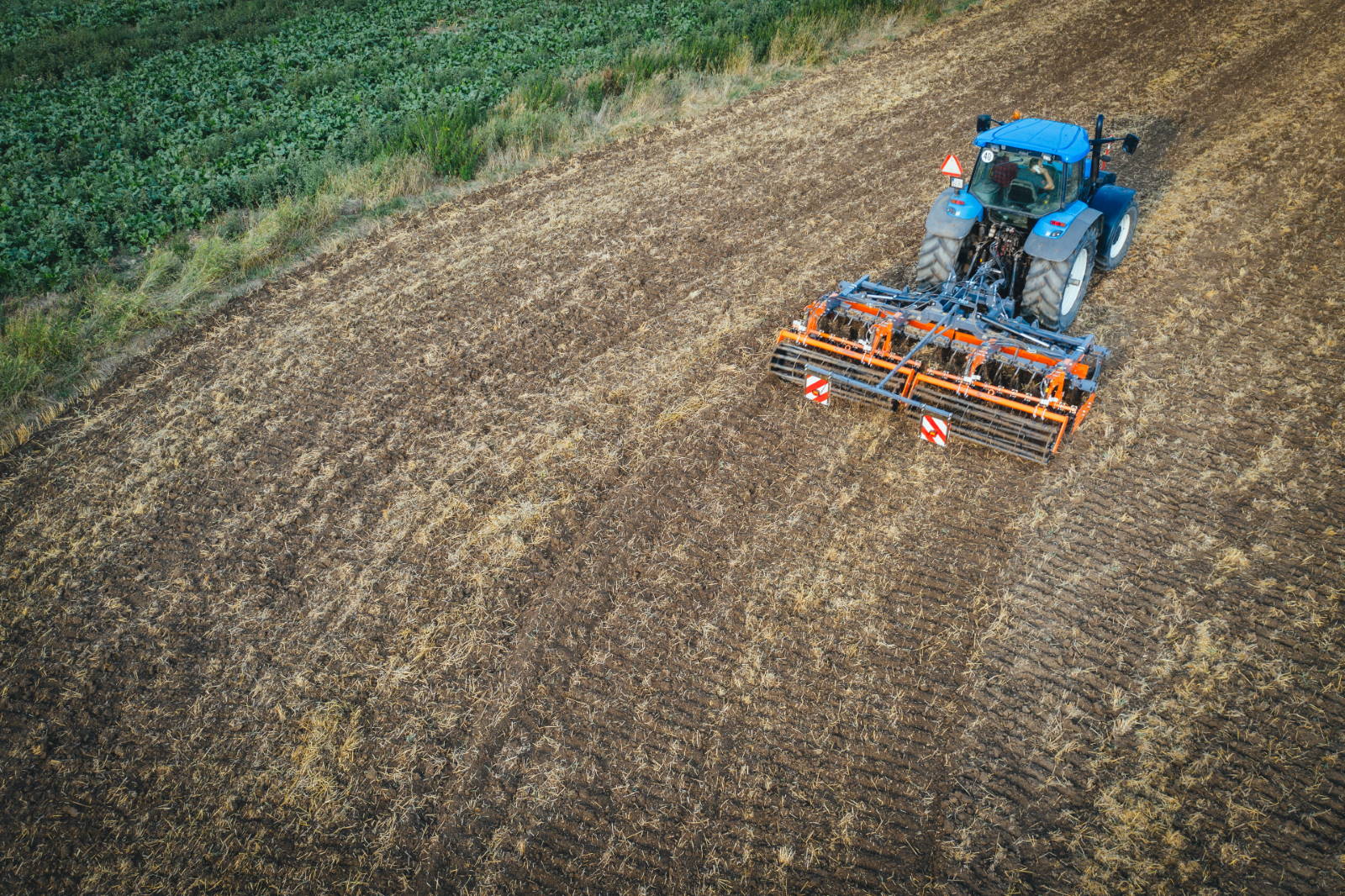

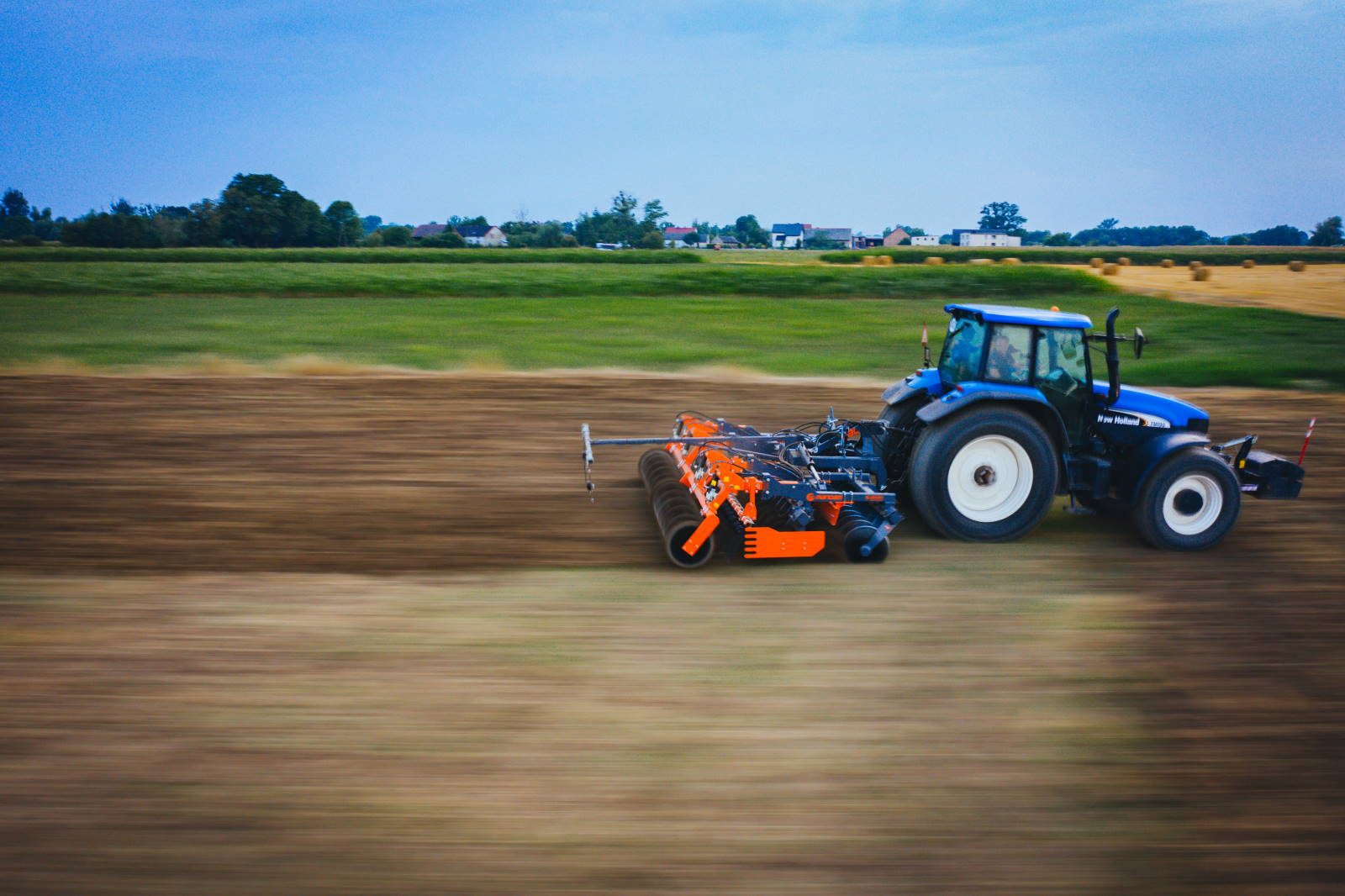

    GAL-C compact disc harrows with two rows of 560mm boron steel notched discs mounted on maintenance free fully sealed bearing hubs. Working units mounted to the frame by means of rubber suspension rollers. Many optional accesories available as variety of rollers, scrapers, screens and more.

  • Technical data

    #Typ
    mpcsmmHPkg
    2670GAL-C 2,52,5-Rubber20560801098
    2600GAL-C 3,03,0-Rubber245601001220
    2635GAL-C 3,53,5-Rubber285601201342
    2605GAL-C 4,04,0-Rubber325601401706
    2610GAL-C 4,0 H4,0+Rubber325601602144
    2615GAL-C 4,5 H4,5+Rubber365601702301
    2620GAL-C 5,0 H5,0+Rubber425601802386
    2630GAL-C 6,0 H6,0+Rubber485602002673

  • Standard accesories

    • Shock absorber
    • Maintenance-free bearing
    • Adjustment of the roller offset
    • Middle plate
    • Side plate mounted on shock absorbers



  • Optional accesories

    • Seeder Delimbe SP5
    • Transport chassis
    • Plates ø 610mm
    • Tubular roller ø 540mm
    • Tubular roller ø 620mm
    • Ringroller (V-ring) ø 600mm
    • Ringroller (V-ring)<br> ø600 mm with paddle
    • T-ring roller ø 600mm
    • C-ring roller ø 600mm
    • C-ring Tandem roller
    • Springroller ø 560mm
    • Packer roller ø 600mm
    • Rubber roller ø 500mm
    • Tines front of the roller
    • Tines after roller
    • Middle screan
    • Opework screen
    • Leaf spring SKAN cultivator
    • Leaf spring SKAN cultivator with hydraulic angle adjustment
    • Support wheels 10,8/80x12 (2 pcs)
    • Transport LED
    • Hydraulic adjustment of working depth

Optional accesories

Seeder Delimbe SP5

Transport chassis

Plates ø 610mm

Tubular roller ø 540mm

Tubular roller ø 620mm

Ringroller (V-ring) ø 600mm

Ringroller (V-ring) ø600 mm with paddle

T-ring roller ø 600mm

C-ring roller ø 600mm

C-ring Tandem roller

Springroller ø 560mm

Packer roller ø 600mm

Rubber roller ø 500mm

Tines front of the roller

Tines after roller

Middle screan

Opework screen

Support wheels 10,8/80x12 (2 pcs)

Transport LED

Hydraulic adjustment of working depth

Leaf spring SKAN cultivator

Leaf spring SKAN cultivator with hydraulic angle adjustment
