Disc harrow TAL-C

Resor 100x13 mm

Discs Ø560mm

V-ring roller with paddle (OPTION)

Maintenance-free bearings

Middle screen (OPTION)

Side screans

  • Resor 100x13 mm

  • Discs Ø560mm

  • V-ring roller with paddle (OPTION)

  • Maintenance-free bearings

  • Middle screen (OPTION)

  • Side screans

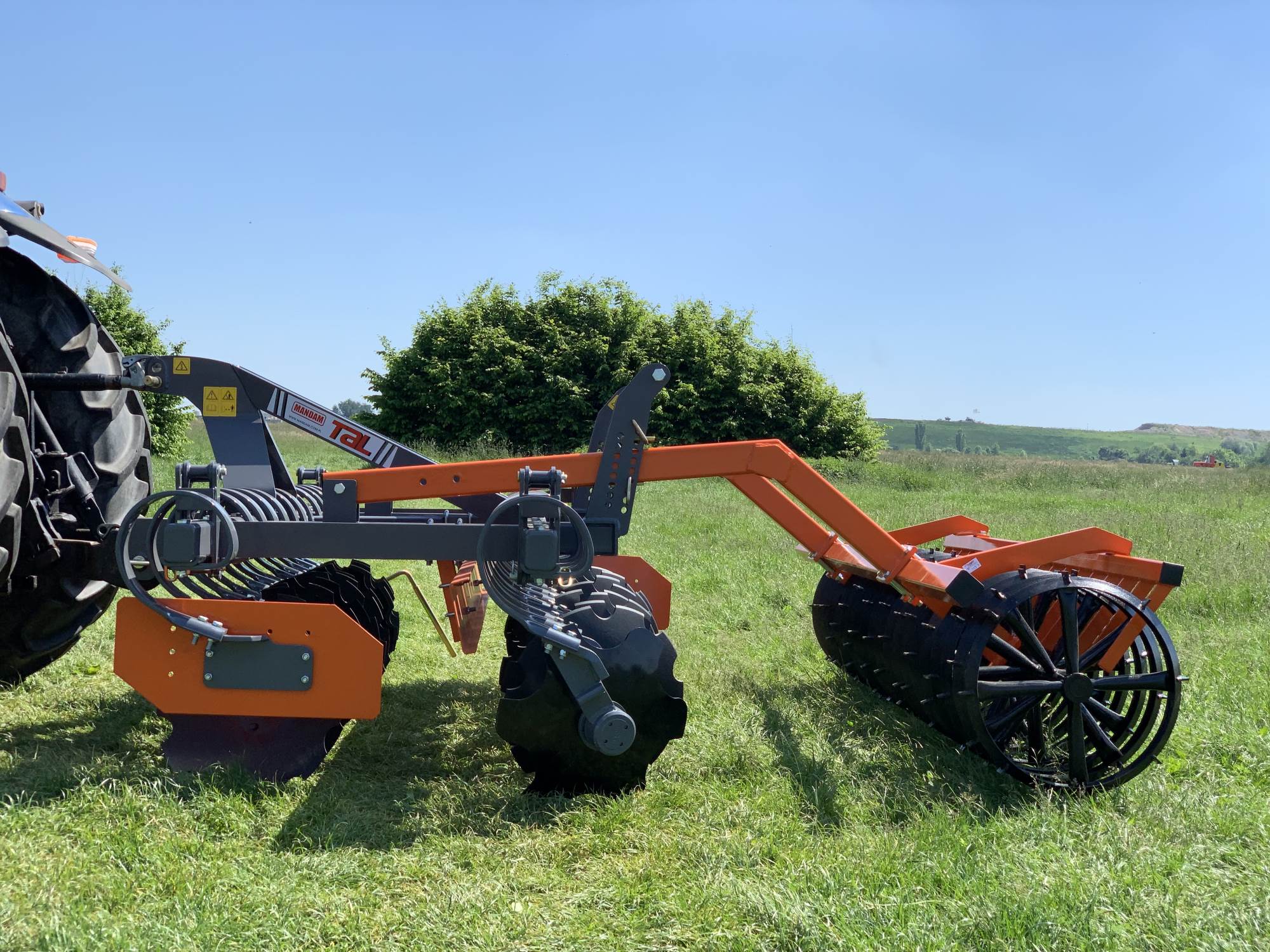

Disc harrow TAL-C

  • Description

    The TAL-C disc harrow is recommended for light and medium types of soil for post-harvest cultivation and as a unit to complete the process of pre-sowing cultivation. Thanks to independently mounted 560 mm diameter notched discs, each protected by a leaf spring suspension, the machine can be operated on stony soils. The TAL-C discs are mounted at preset angle to penetrate the soil well whereas maintenance-free oversize hubs provide exceptional durability. TAL-C may be equipped with wide range of options: rollers, scrapers, transport chasis, seeders, ect.

  • Technical data

    #Typ
    mpcsmmHPkg
    2275TAL-C 2,502,5-Springs20560801048
    2250TAL-C 3,003,0-Springs245601001119
    2280TAL-C 3,503,5-Springs285601201406
    2255TAL-C 4,004,0-Springs325601401606
    2260TAL-C 4,004,0+Springs325601602034
    2285TAL-C 4,504,5+Springs365601702275
    2265TAL-C 5,005,0+Springs425601802443
    2270TAL-C 6,006,0+Springs485602002658

  • Standard accesories



    • Spring 100x13 mm
    • Maintenance-free bearing
    • Stabilizing plate for spring
    • Middle plate
    • Side plate mounted on spring



  • Optional accesories

    • Seeder Delimbe SP5
    • Transport chassis
    • Tubular roller ø 540mm
    • Tubular roller ø 620mm
    • Ringroller (V-ring) ø 600mm
    • Ringroller (V-ring)<br> ø600 mm with paddle
    • T-ring roller ø 600mm
    • C-ring roller ø 600mm
    • C-ring Tandem roller
    • Springroller ø 560mm
    • Packer roller ø 600mm
    • DD roller ø 600mm
    • Rubber roller ø 500mm
    • Tines front of the roller
    • Tines after roller
    • Opework screen
    • Hydraulic folding lock HBS
    • Support wheels 10,8/80x12 (2 pcs)
    • Transport LED
    • Hydraulic adjustment of working depth

Optional accesories

Seeder Delimbe SP5

Transport chassis

Tubular roller ø 540mm

Tubular roller ø 620mm

Ringroller (V-ring) ø 600mm

Ringroller (V-ring) ø600 mm with paddle

T-ring roller ø 600mm

C-ring roller ø 600mm

C-ring Tandem roller

Springroller ø 560mm

Packer roller ø 600mm

Packer roller ø 600mm

Rubber roller ø 500mm

Tines front of the roller

Tines after roller

Opework screen

Hydraulic folding lock HBS

Support wheels 10,8/80x12 (2 pcs)

Transport LED

Hydraulic adjustment of working depth
