Cultivator SPEC HD

Double spring protection

Tubular roller Ø540mm (OPTION)

Maintenance-free bearings

Sickle tine

New adjustment of border discs working range

  • Double spring protection

  • Tubular roller Ø540mm (OPTION)

  • Maintenance-free bearings

  • Sickle tine

  • New adjustment of border discs working range

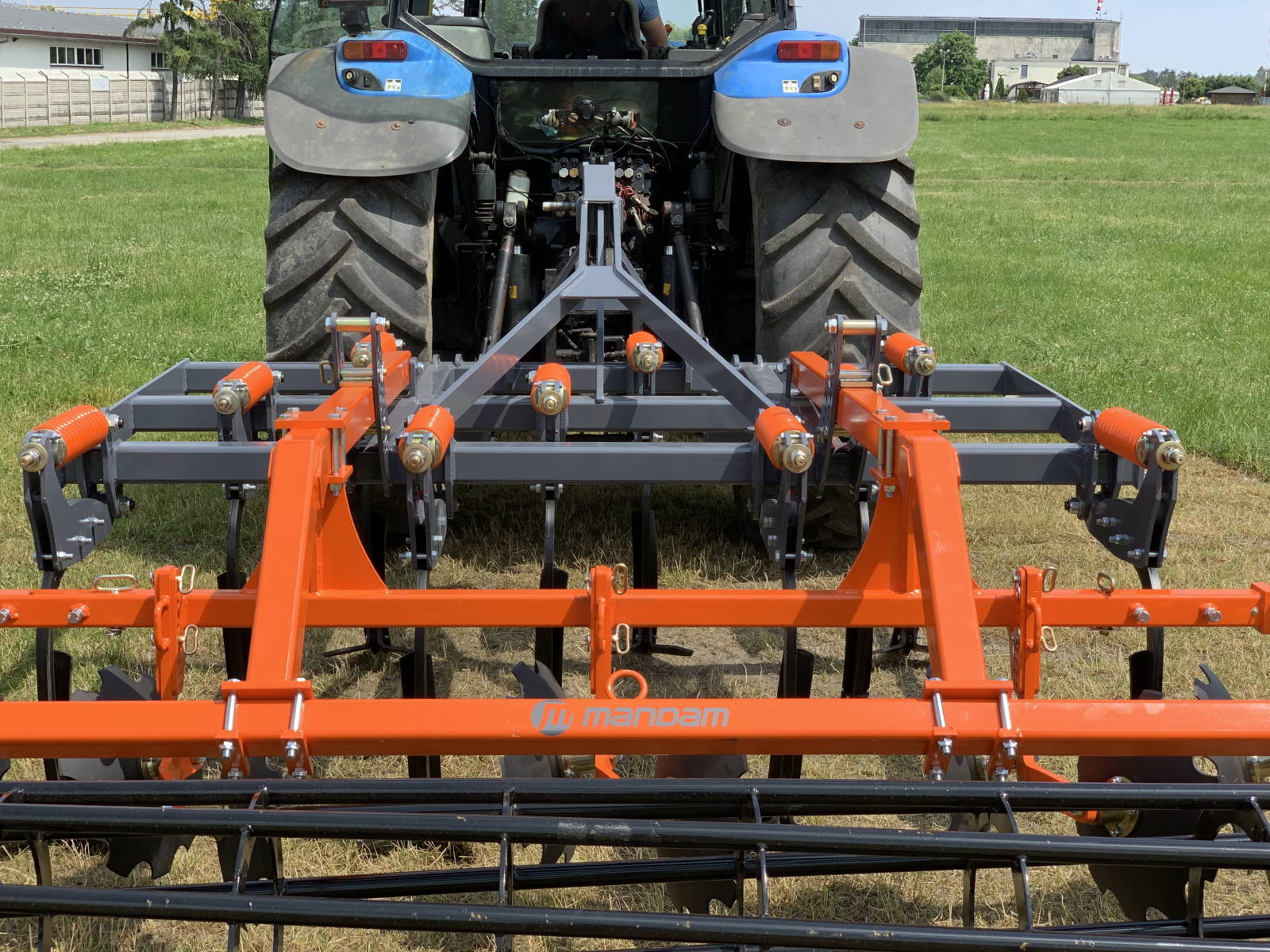

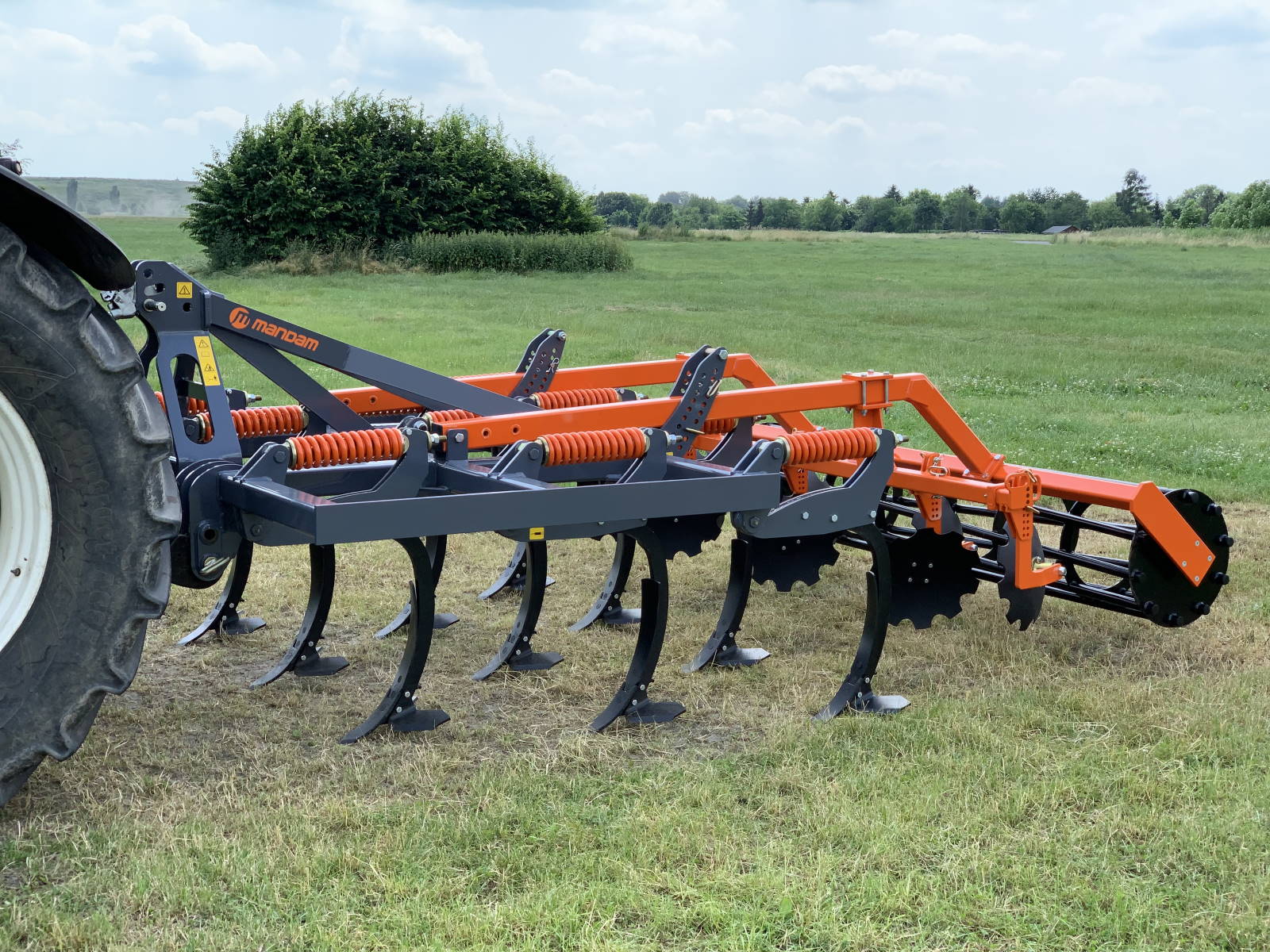

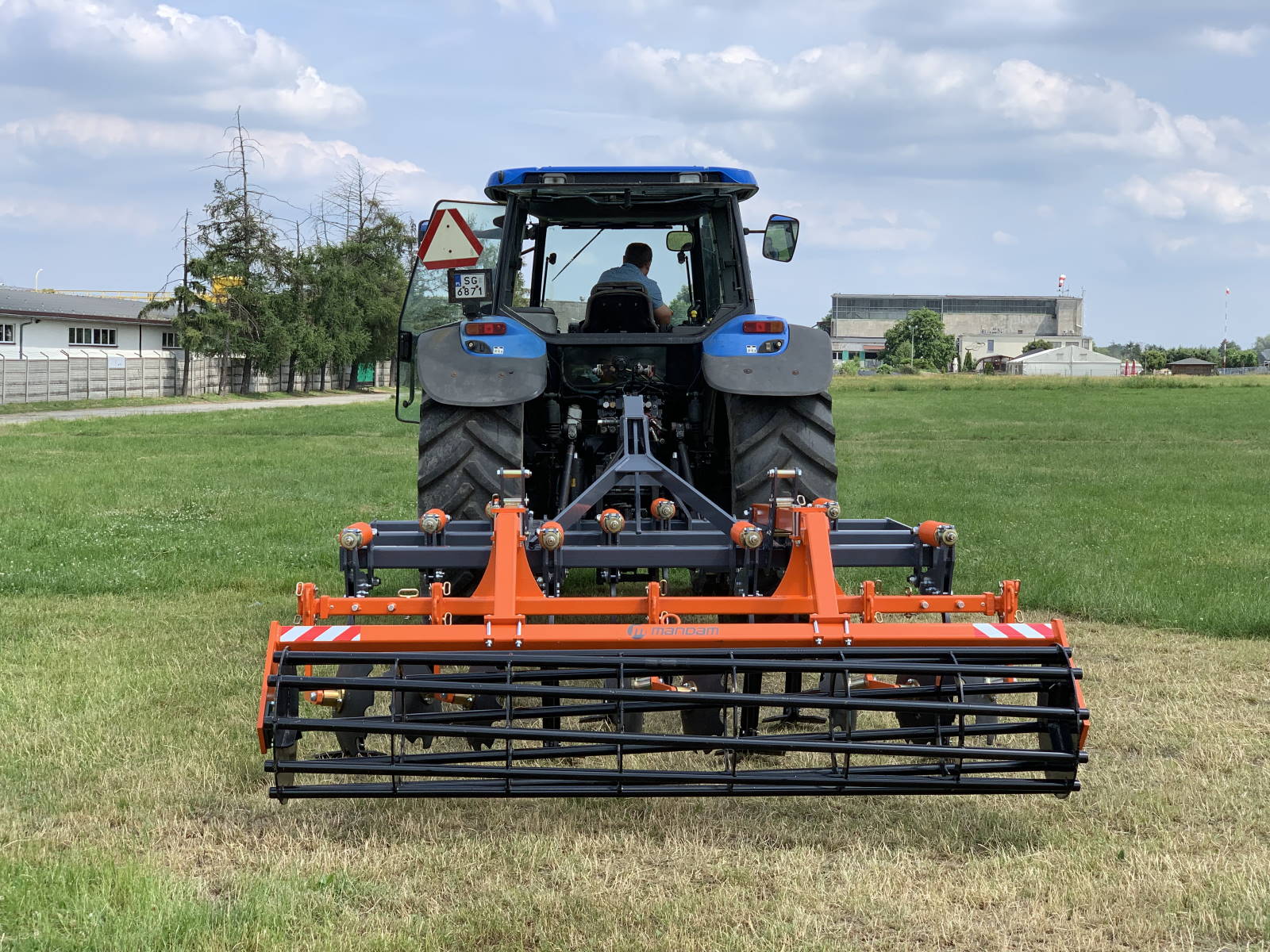

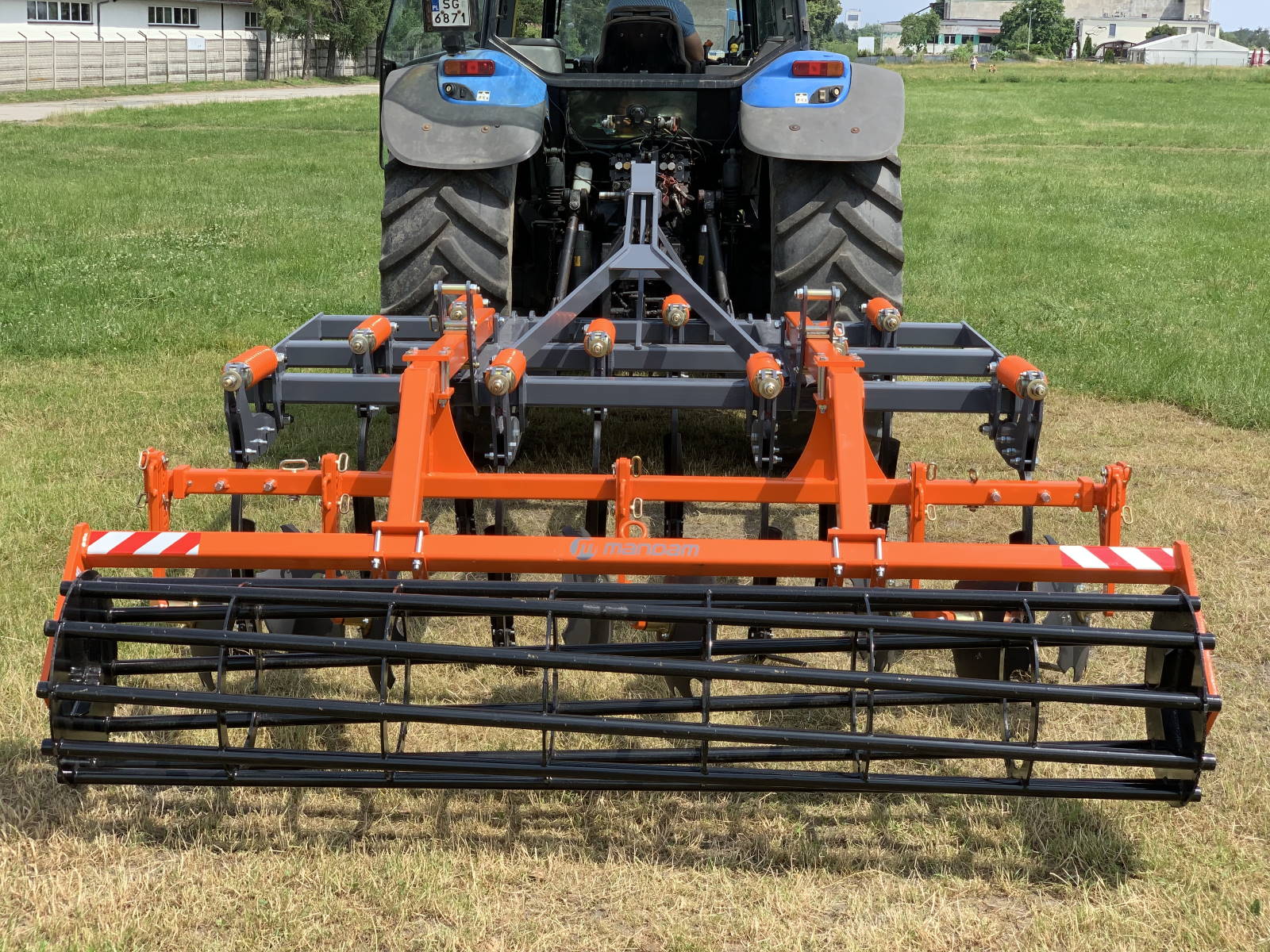

Cultivator SPEC HD

  • Description

    Spec HD (heavy duty) is the tougher version of regular SPEC cultivator. That three row cultivator is designed for stubble cultivation and tillage. Equipped with double spring proteciton with updated swingarm geometry, is able to withstand much greater ground preassure than the regular machine. Minimal activation imput force is 550 kg per tine, which allows, after removing detachable wingshares, aggressive tillage as deep as 30cm. Variety of press rollers to choose from, different toughness points and profiled tines, fulfill the image of the tough while universal machine.



  • Technical data

    #Typ
    mpcspcsHPkg
    6800SPEC HD 3,03,0-1081301764
    6805SPEC HD 4,0 H4,0+13101802418
    6810SPEC HD 4,8 H4,8+16122203570

  • Standard accesories

    • Curved tine with a high trashboard
    • Double spring protection
    • Working system welded to the frame
    • Hydraulic adjustment of working depth
    • Notched discs 465 mm



  • Optional accesories

    • Seeder Delimbe SP5
    • Transport chassis
    • Tubular roller ø 540mm
    • Tubular roller ø 620mm
    • Ringroller (V-ring) ø 600mm
    • Ringroller (V-ring)<br> ø600 mm with paddle
    • T-ring roller ø 600mm
    • C-ring roller ø 600mm
    • C-ring Tandem roller
    • Springroller ø 560mm
    • Packer roller ø 600mm
    • Rubber roller ø 500mm
    • Tines after roller
    • Transport LED
    • Hydraulic adjustment of working depth
    • Transport LED lights
    • Transport chassis with brakes
    • Chisel points 40 mm

Optional accesories

Seeder Delimbe SP5

Transport chassis

Tubular roller ø 540mm

Tubular roller ø 620mm

Ringroller (V-ring) ø 600mm

Ringroller (V-ring) ø600 mm with paddle

T-ring roller ø 600mm

C-ring roller ø 600mm

C-ring Tandem roller

Springroller ø 560mm

Packer roller ø 600mm

Packer roller ø 600mm

Tines after roller

Transport LED

Hydraulic adjustment of working depth

Transport chassis with brakes

Chisel points 40 mm

Transport LED
