Chisel plow GROT

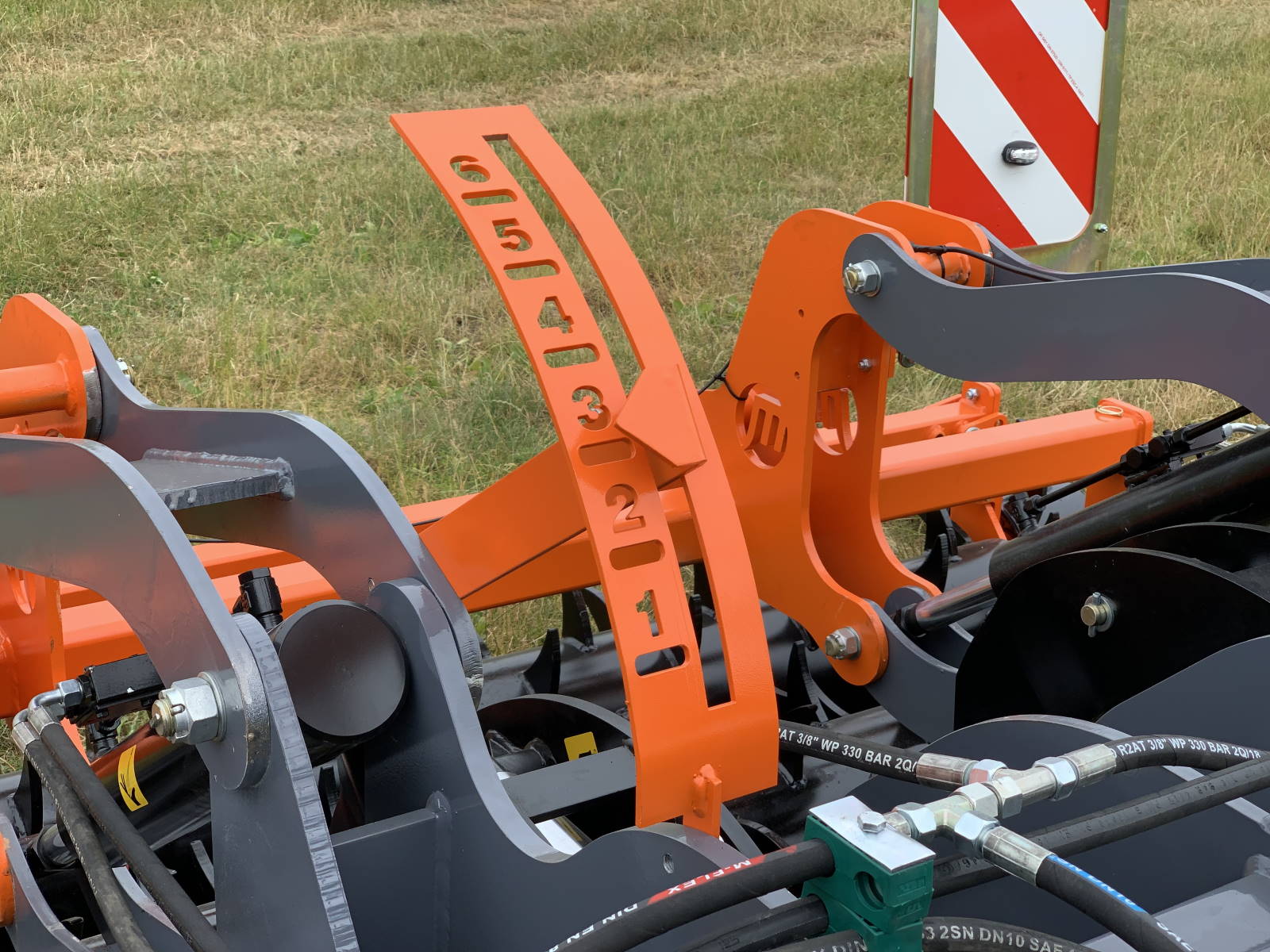

Working depth measure

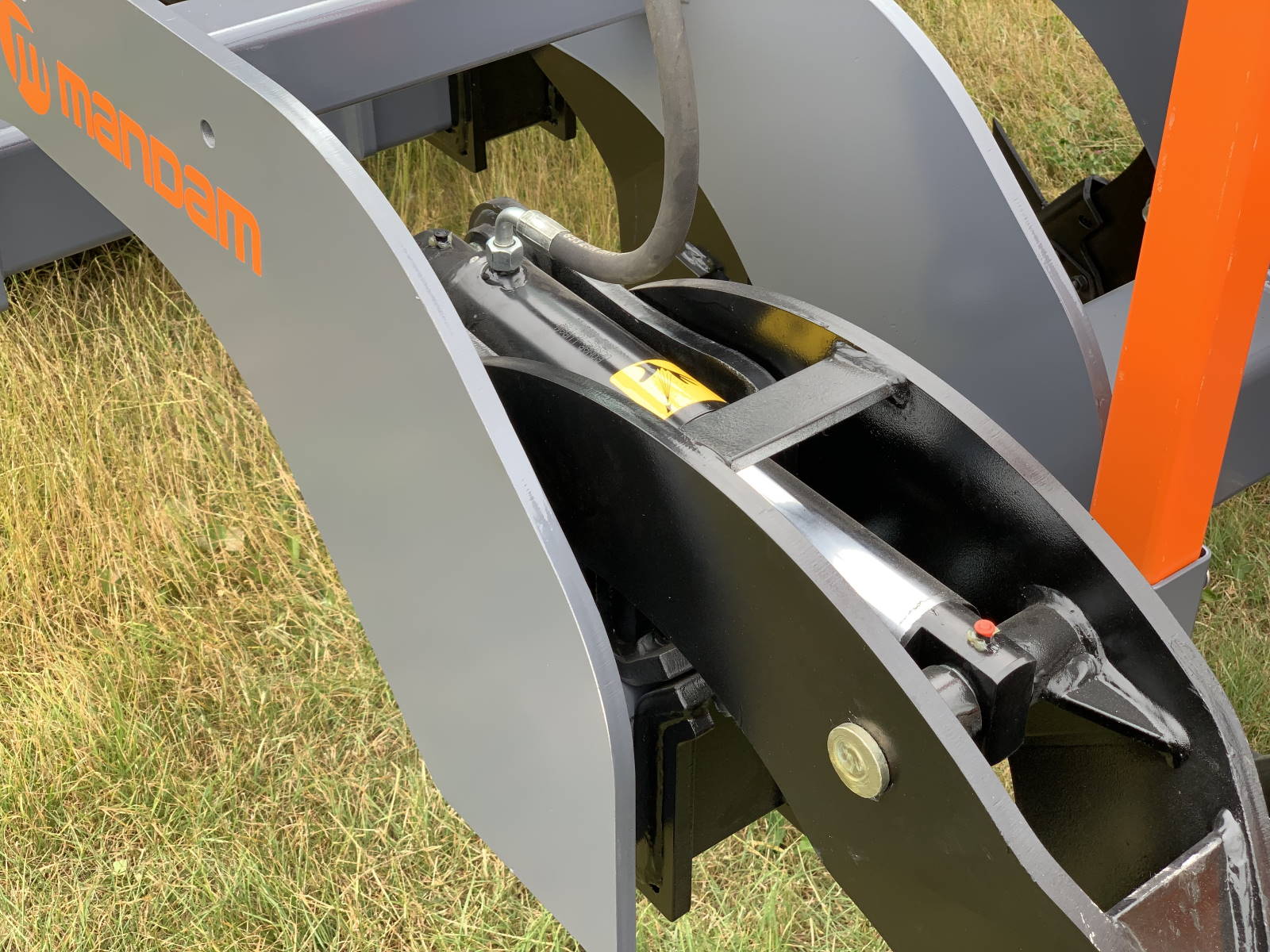

Hydraulic adjustment of working depth

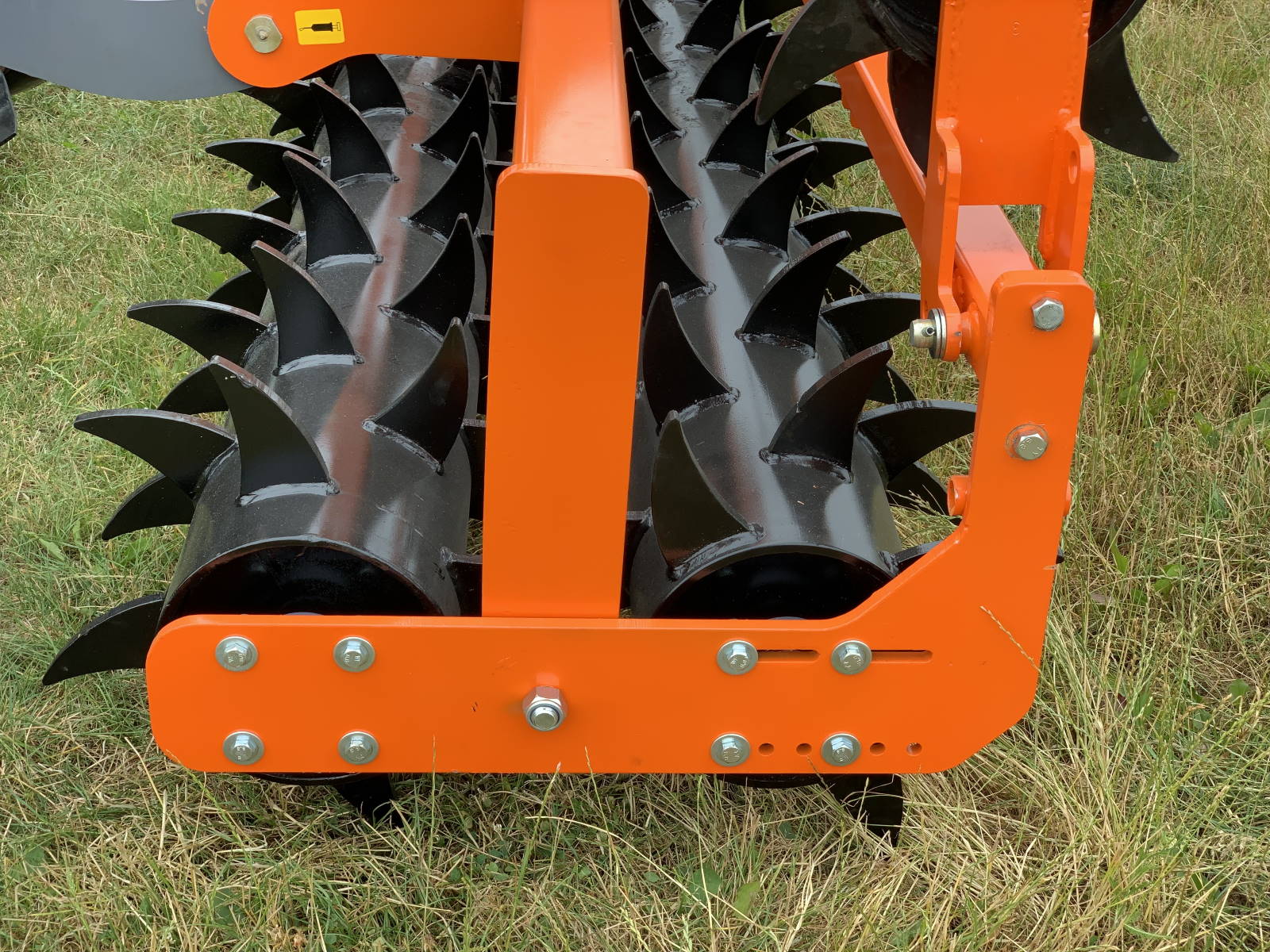

Double spike roller Ø560mm

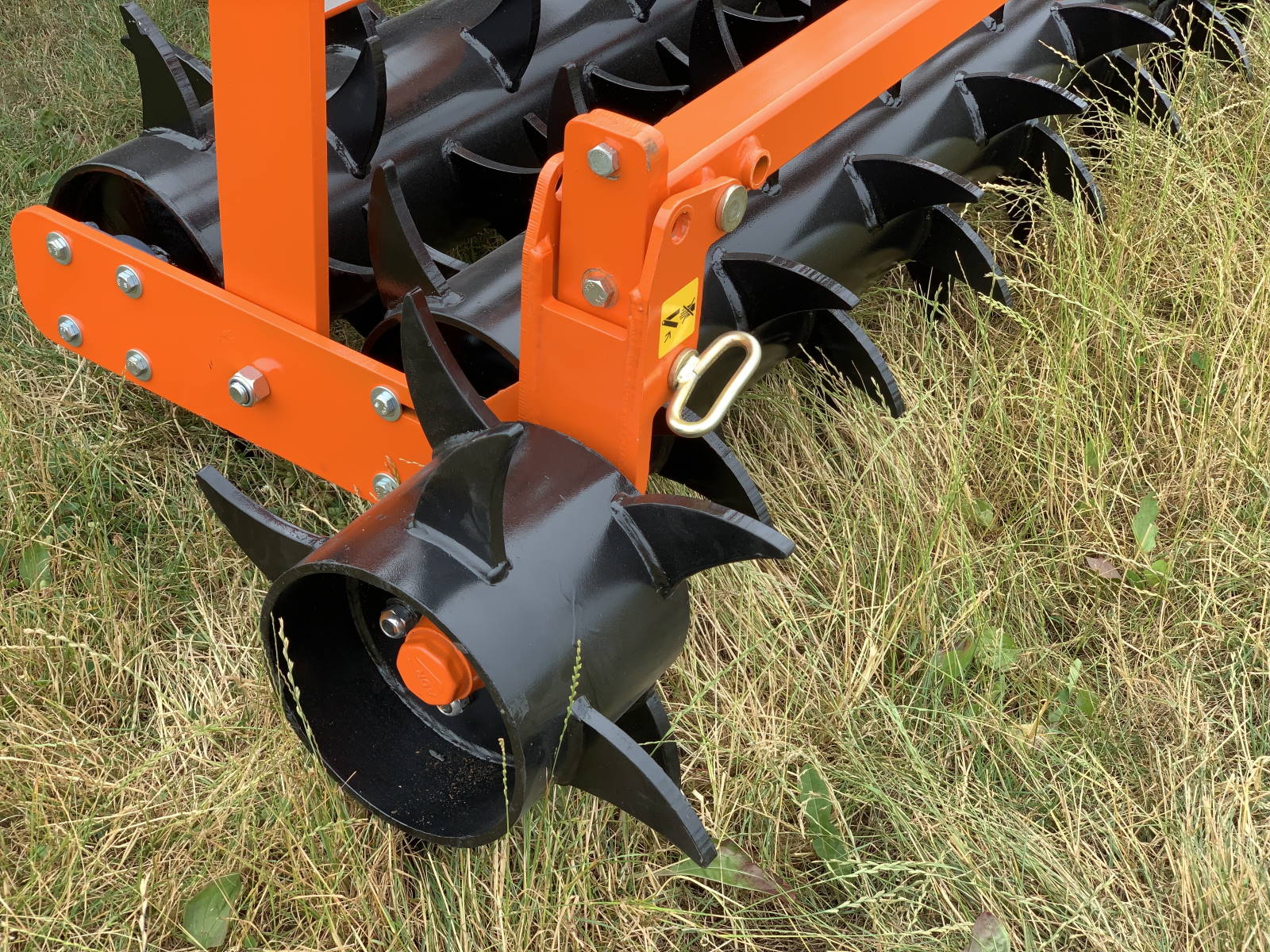

Side rollers Ø560mm (OPTION)

Reversiblepoint

Maintenance-free bearings

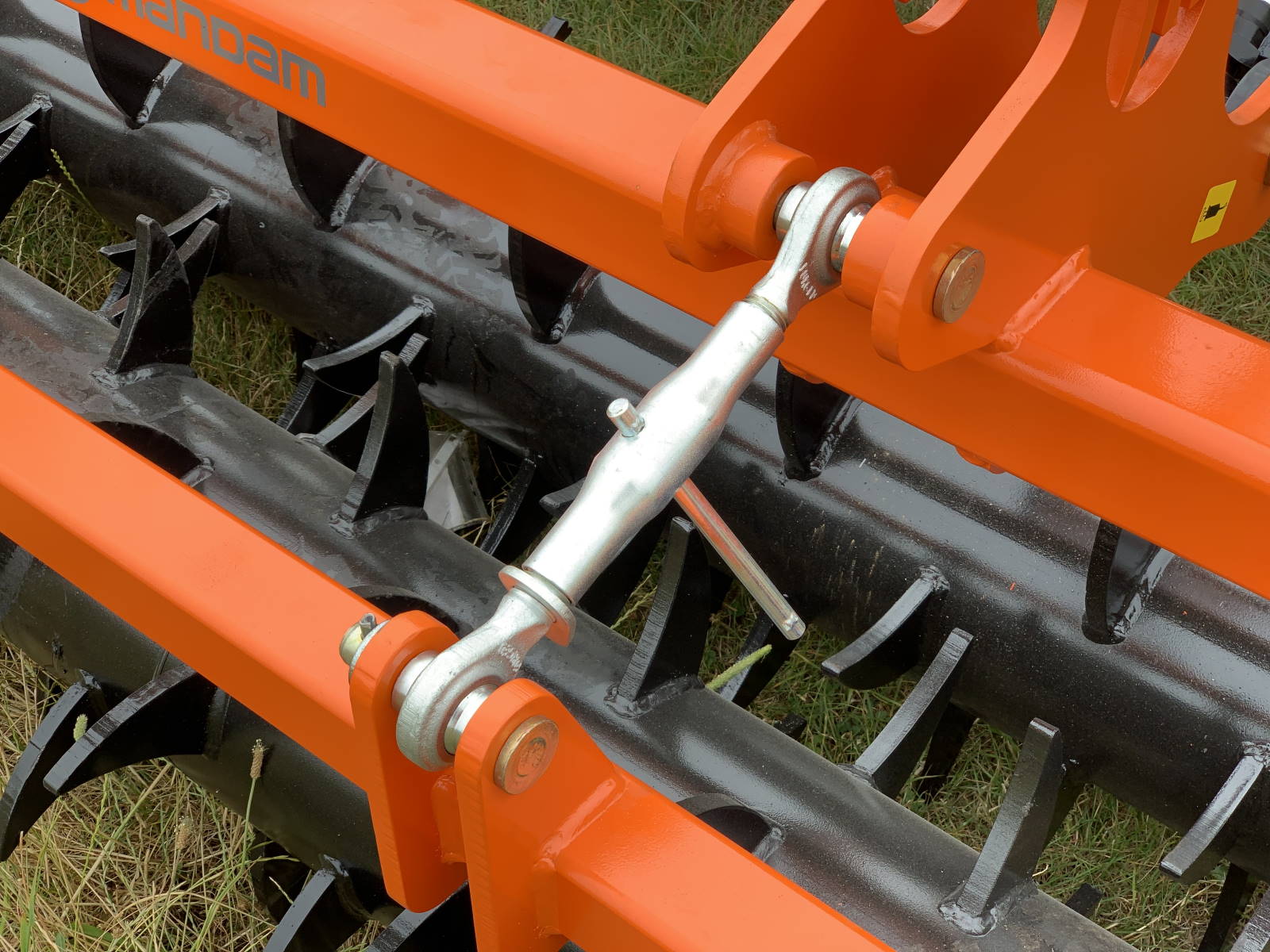

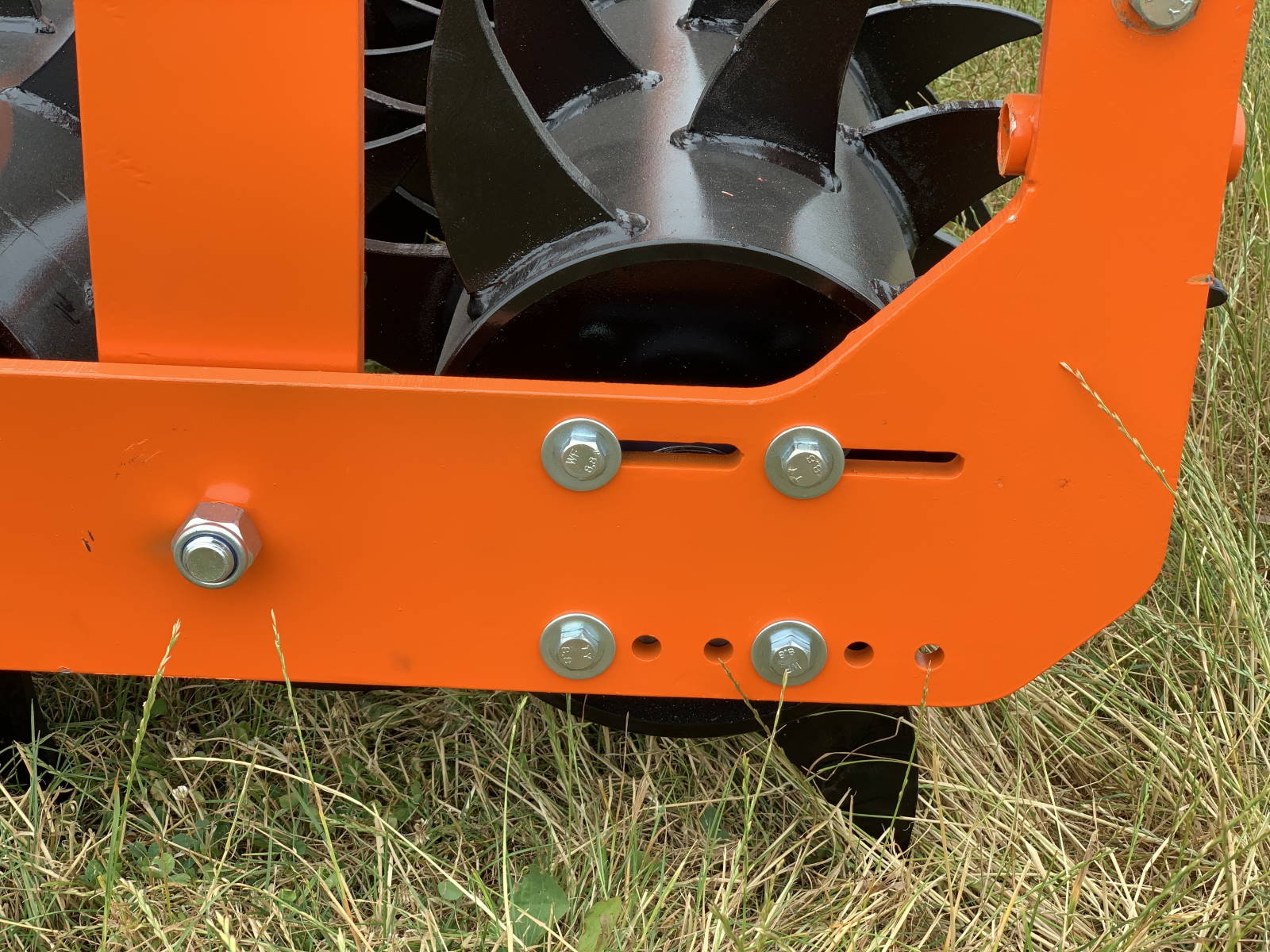

Adjustable distance between rollers

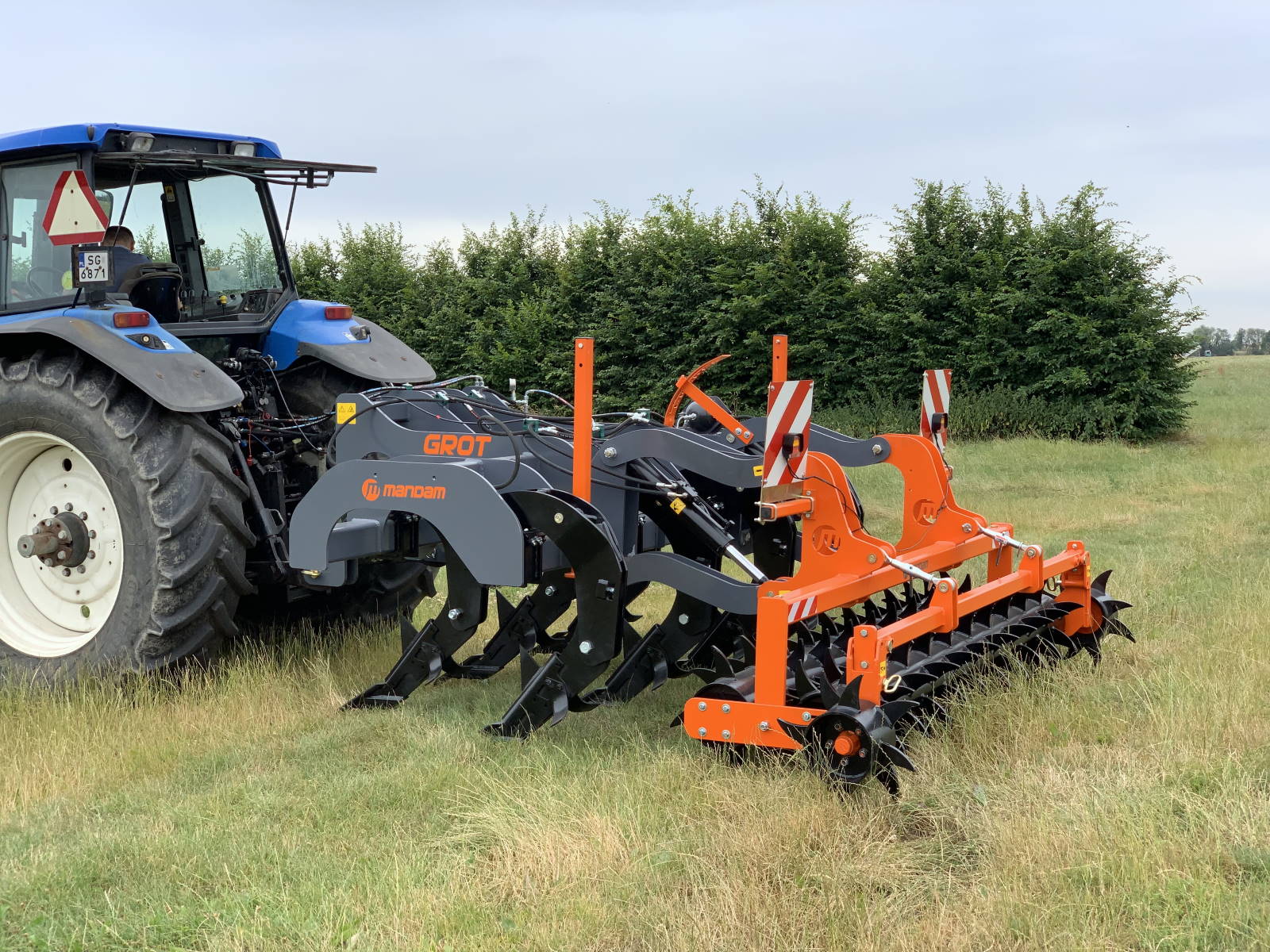

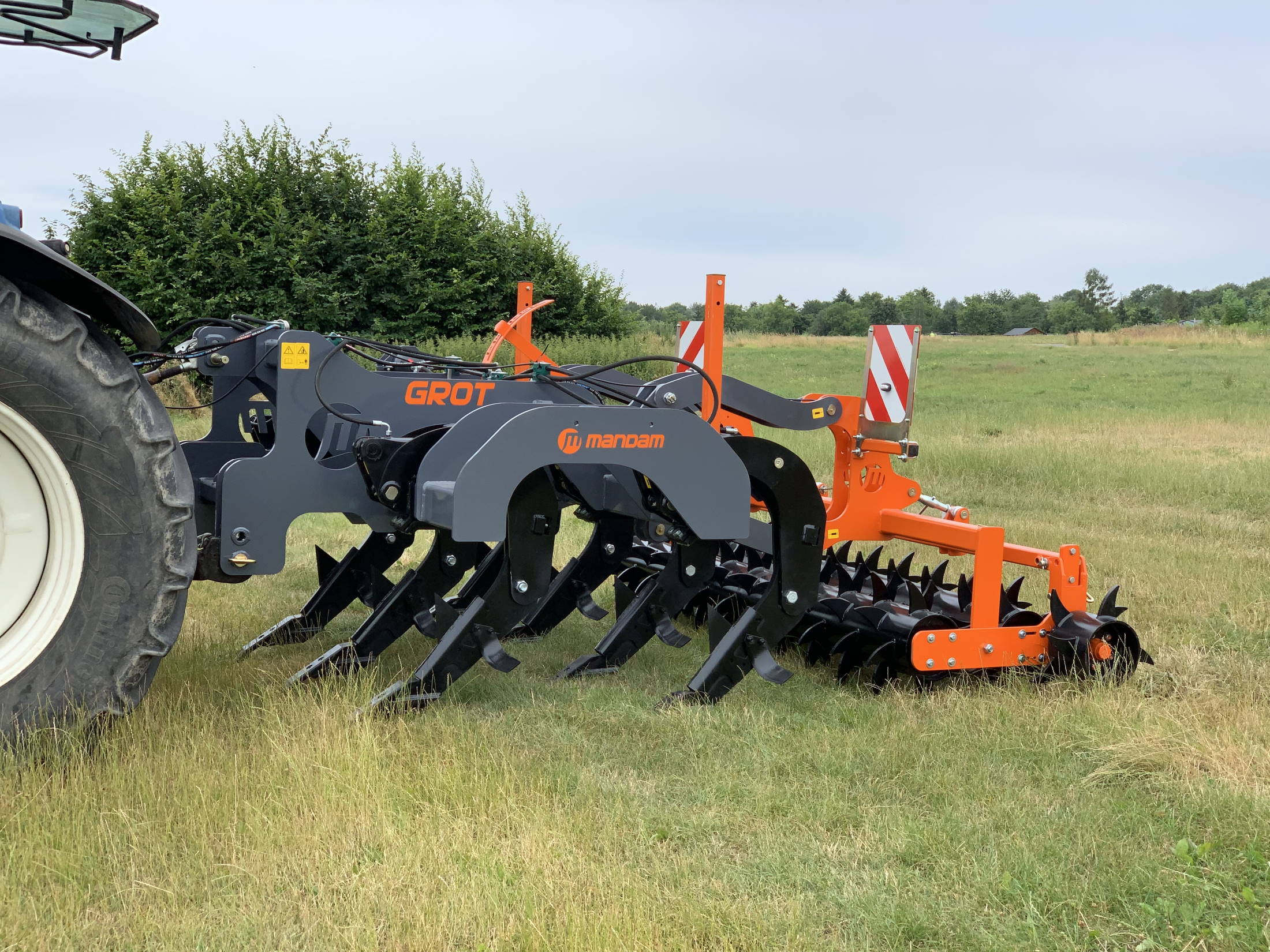

Chisel plow GROT

Description

GROT is available in two working widths with a choice of shear bolt or nonstop protection (NS type) versions.
GROT chisel plows are a great alternative to a traditional plow. They make it quick and cheap work replacing the
traditional plow. Chisel plows can work at great depths (approx. 55 cm), even in extremely difficult soil conditions.
When chisel plows work at a great depth, hard soil layers are torn off, the soil is loosened, and crop residues
are covered. Working system consists of adjustable side wing shares, replaceable shin blades and reversible
sharepoints. Double spike roller section provides better field compression and aeration. Hydraulic working depth
adjustment is a standard GROT equipment. There are few paid options available such as: folding side rollers
(recommended for 7-teeth versions), reinforced sharepoints, traffic LED lights.

Technical data

#Typ
mpcsmmPSkg
7010GROT 2,2/52,255001802250
7000GROT 3,0/53,056751802580
7005GROT 3,0/73,074502602900
7050GROT 2,2/5 NS2,255001802560
7055GROT 3,0/5 NS3,056751802877
7060GROT 3,0/7 NS3,074502603175

Optional accesories

  • Reversible weld-on share point
  • Side spike roller Ø 560 mm (left & right)
  • LED lights
