EKO-WIR

brony talerzowe tal-c

SLEEVED HEADSTOCK

ADJUSTABLE SUPPORTS

ADJUSTABLE STRUTS

PROTECTION SCREEN (OPTION)

HYDRAULIC FOLDING

STAR WHEELS D=540MM WITH SPRING PRESSURE

EKO-WIR

Description

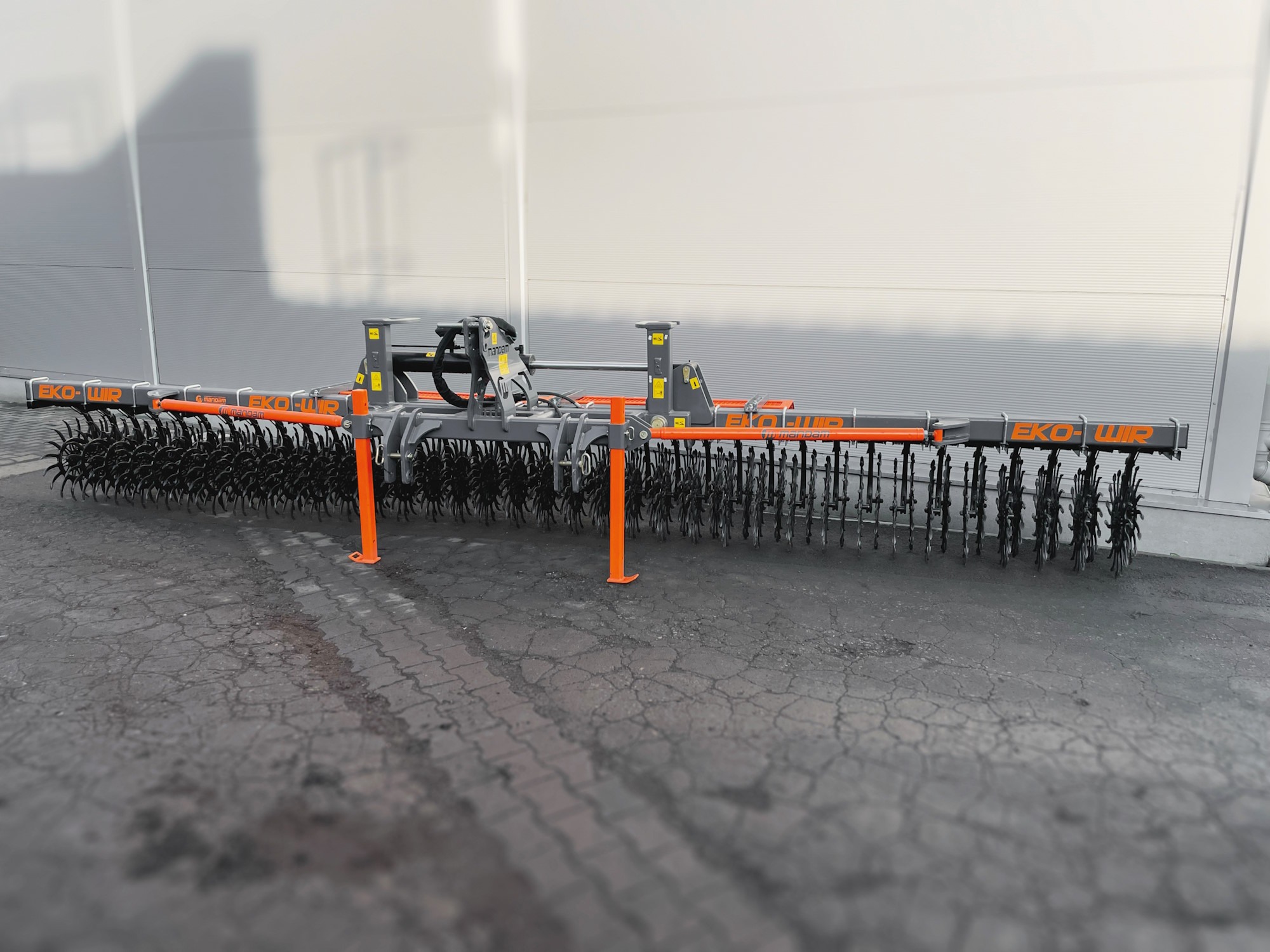

The rotary harrow EKO-WIR is designed for soil care. The harrow is primarily used for loosening the soil and mechanically removing weeds. During this procedure, the effect of enriching the soil culture with oxygen, nitrogen and other nutrients is also achieved, which are very important for obtaining an ideal substrate for plant growth from the very beginning. The harrow can be used on any type of crop, including sunflower, corn, beets, etc. and works well on all types of soil, especially on very dry soils. The unit can also be used to mix fertilizers or herbicides with the soil. The working elements are star wheels with a standard diameter of Ø540 mm, set in a tandem arrangement on a swinging arm amortized with 8 spiral springs, thanks to which it is possible for the wheels to deflect and adjust to the field surface during work. Thanks to this, the machine ensures quick and effective field care. EKO-WIR harrows can be optionally equipped with support wheels ensuring adequate support for the machine during work and when turning the machine.

Technical data

#Typ
mmmpcsHPkg
1000EKO-WIR 6,2 H6,2 H+54072901260

Optional accesories

Stone protection

Support wheels 18×9,50-84 PR ST 52

LED lights
