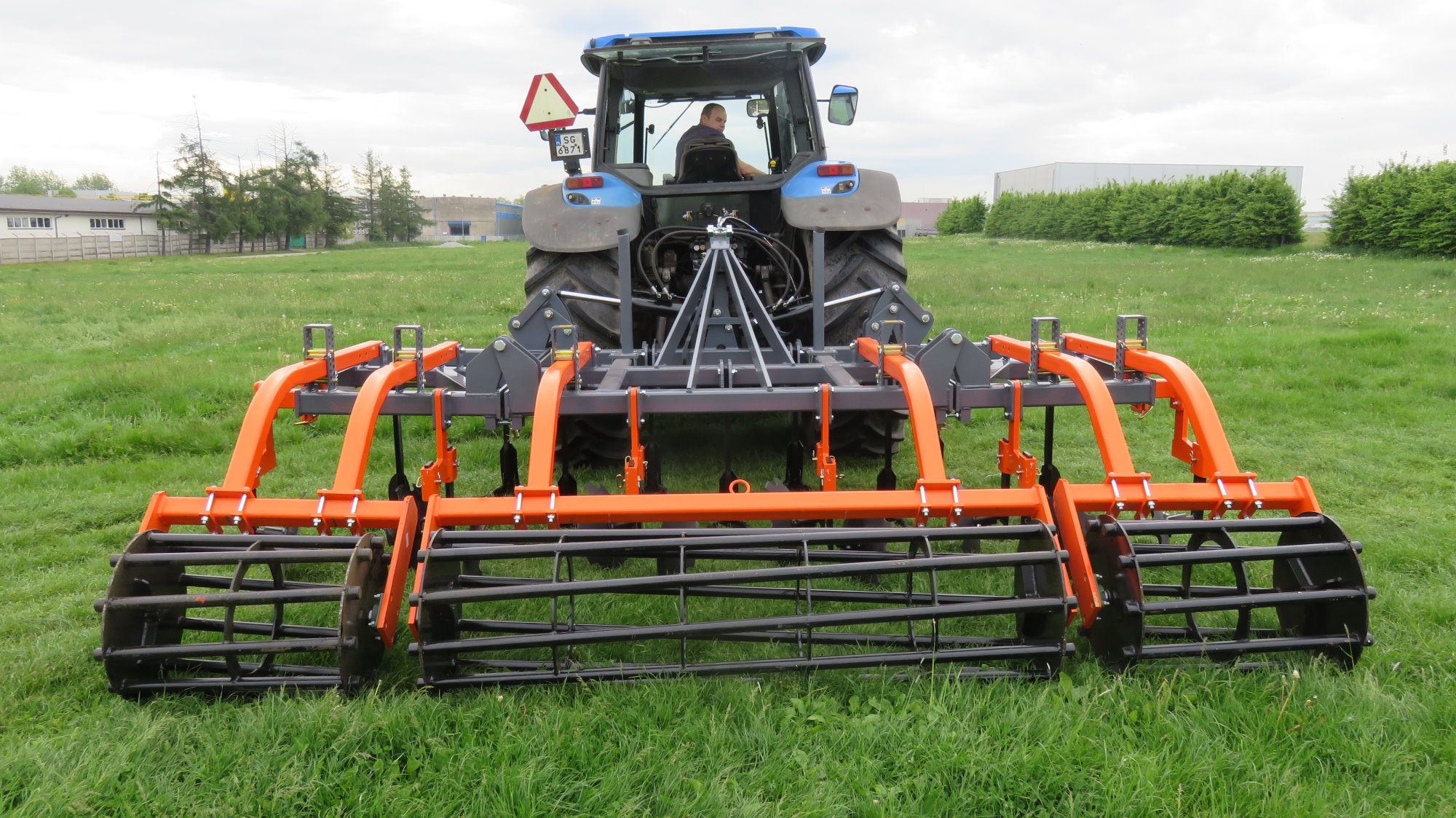

Cultivator KUS

Bolt protection (KUS B)

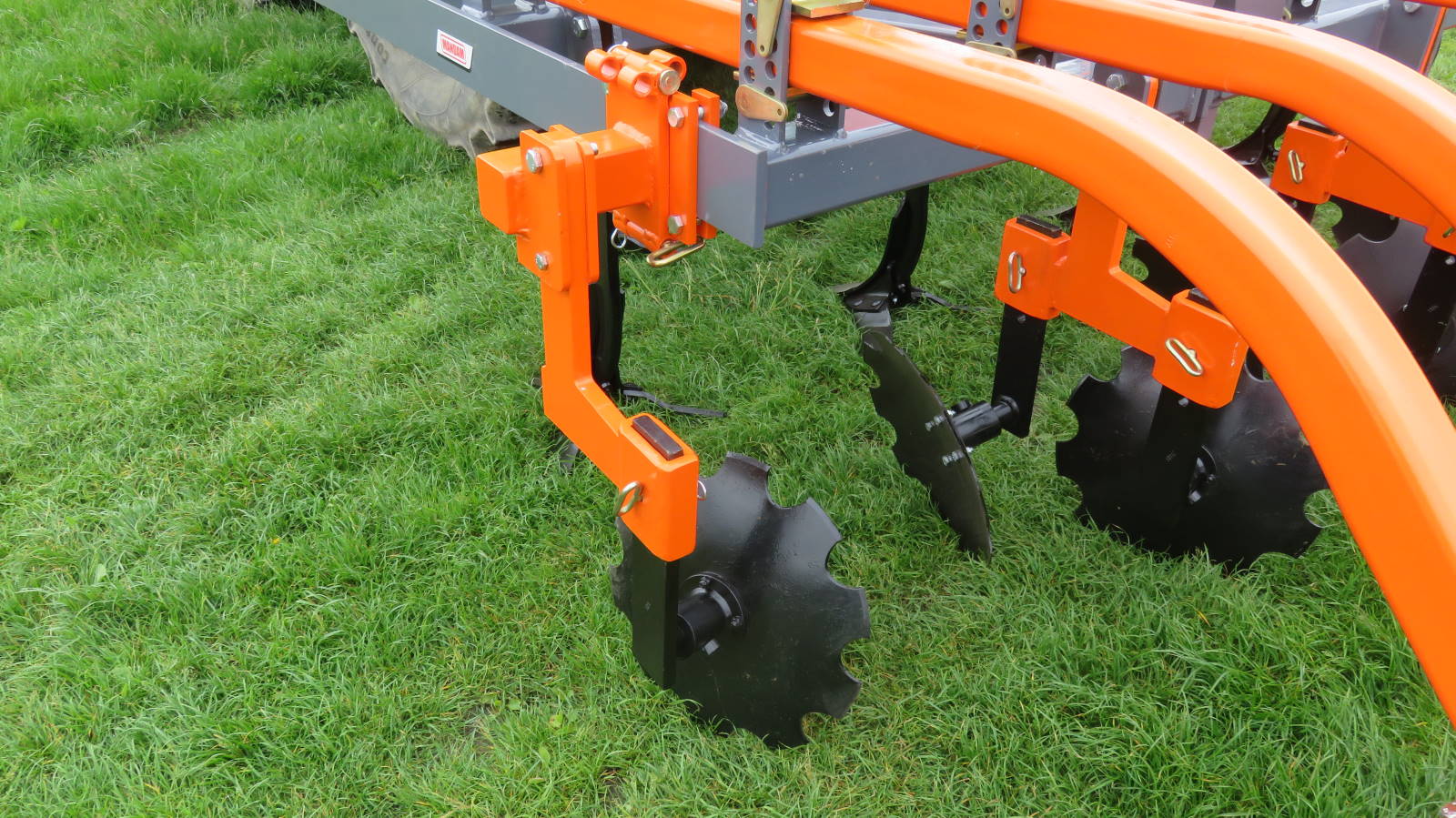

Border discs (OPTION)

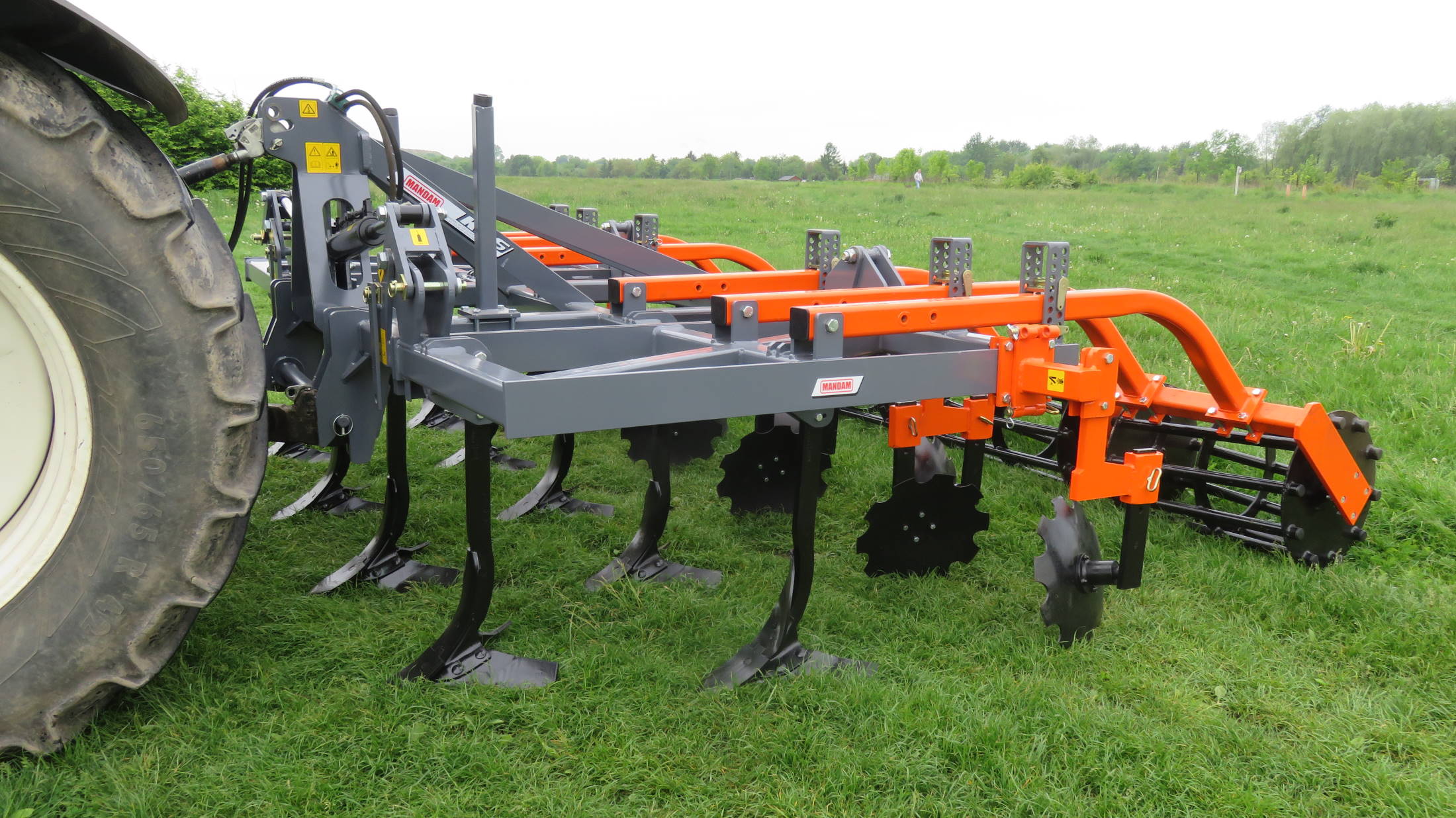

Two rows of 5-elements tines

Discs Ø 465 mm

V-ring roller (OPTION)

  • Bolt protection (KUS B)

  • Border discs (OPTION)

  • Two rows of 5-elements tines

  • Discs Ø 465 mm

  • V-ring roller (OPTION)

Cultivator KUS

  • Description

    The KUS cultivator comprise a wide range of machines designed as a robust frame with two beams. The type of machines is used for pre-sowing and pre-planting cultivation as well as for stubble cultivation as they achieve excellent results thanks to perfectly performed undercutting and mixing of post-harvest remains. Two rows of tines, alternating settings of of 465 mm diameter notched discs and a wide range of rollers to choose from guarantee high quality of post-harvest cultivation.

  • Technical data

    #Typ
    mpcspcsHPkg
    500KUS 2,2 B2,2-Bolts5460616
    505KUS 2,2 S2,2-Springs5470830
    510KUS 2,6 B2,6-Bolts6580762
    515KUS 2,6 S2,6-Springs6590896
    520KUS 3,0 B3,0-Bolts76100864
    525KUS 3,0 S3,0-Springs761101101
    570KUS 3,8 B3,8-Bolts981401118
    575KUS 3,8 S3,8-Springs981501501
    530KUS 3,8 BH3,8+Bolts981501218
    535KUS 3,8 SH3,8+Springs981601618
    540KUS 4,8 BH4,8+Bolts11101601630
    545KUS 4,8 SH3,8+Springs11101701820
    550KUS 5,6 BH5,6+Bolts13122001990
    555KUS 5,6 SH5,6+Springs13122102482

  • Standard accesories

    • Five-elements working tools
    • Sheer bolt protection

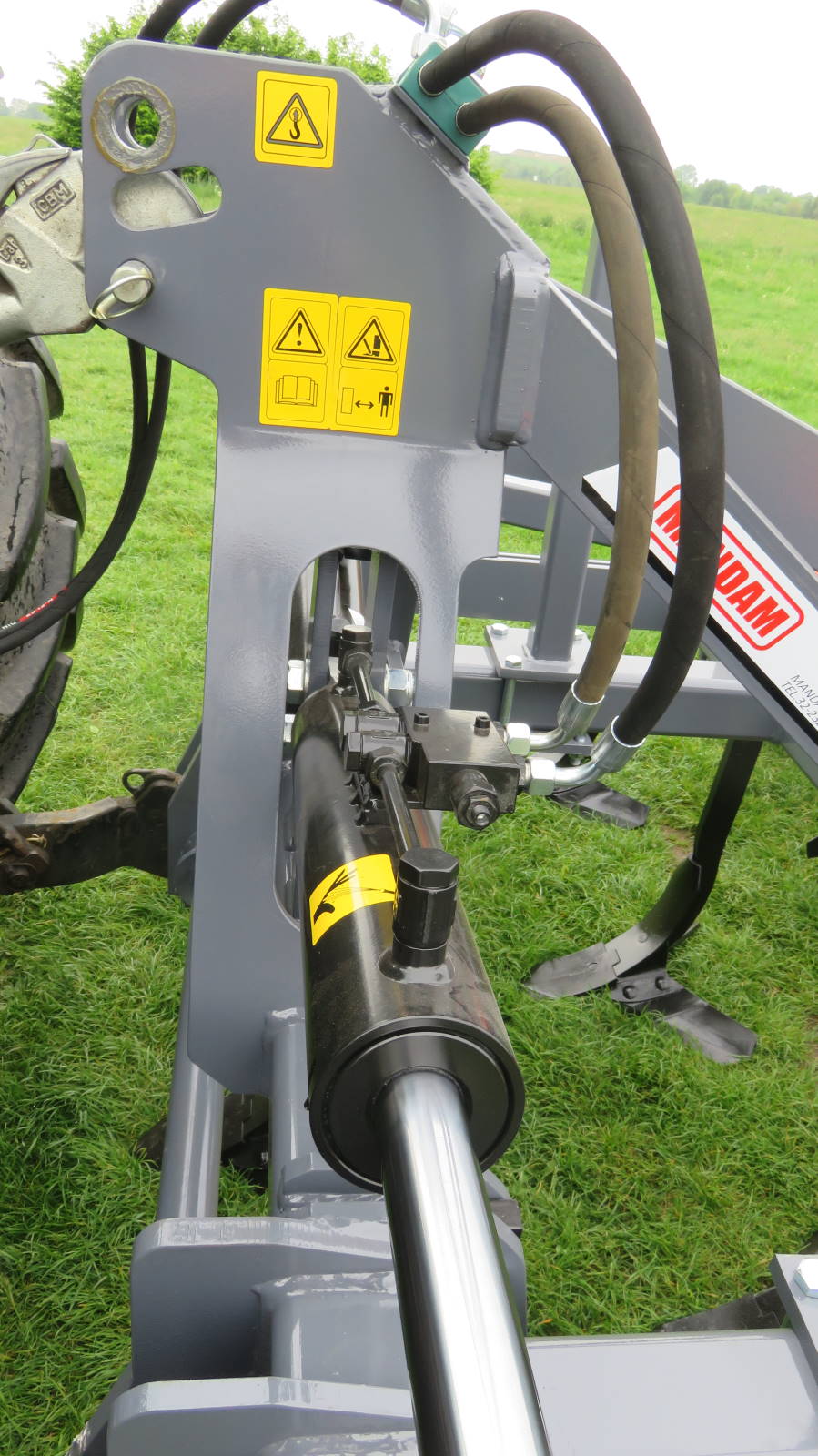

    • Hydraulic adjustment of working depth
    • Spring protection
    • Adjustment of the roller offset



  • Optional accesories

    • Seeder Delimbe SP5
    • Border discs
    • Tubular roller ø 540mm
    • Tubular roller ø 620mm
    • Ringroller (V-ring) ø 600mm
    • Ringroller (V-ring)<br> ø600 mm with paddle
    • T-ring roller ø 600mm
    • C-ring roller ø 600mm
    • C-ring Tandem roller
    • Springroller ø 560mm
    • Packer roller ø 600mm
    • Rubber roller ø 500mm
    • Tines front of the roller
    • Tines after roller
    • Transport LED
    • Hydraulic adjustment of working depth
    • Optional hitching bar
    • Tandem roller

Optional accesories

Seeder Delimbe SP5

Border discs

Tubular roller ø 540mm

Tubular roller ø 620mm

Ringroller (V-ring) ø 600mm

Ringroller (V-ring) ø600 mm with paddle

T-ring roller ø 600mm

C-ring roller ø 600mm

C-ring Tandem roller

Springroller ø 560mm

Packer roller ø 600mm

Rubber roller ø 500mm

Tines front of the roller

Tines after roller

Transport LED

Hydraulic adjustment of working depth

Optional hitching bar

Tandem roller
