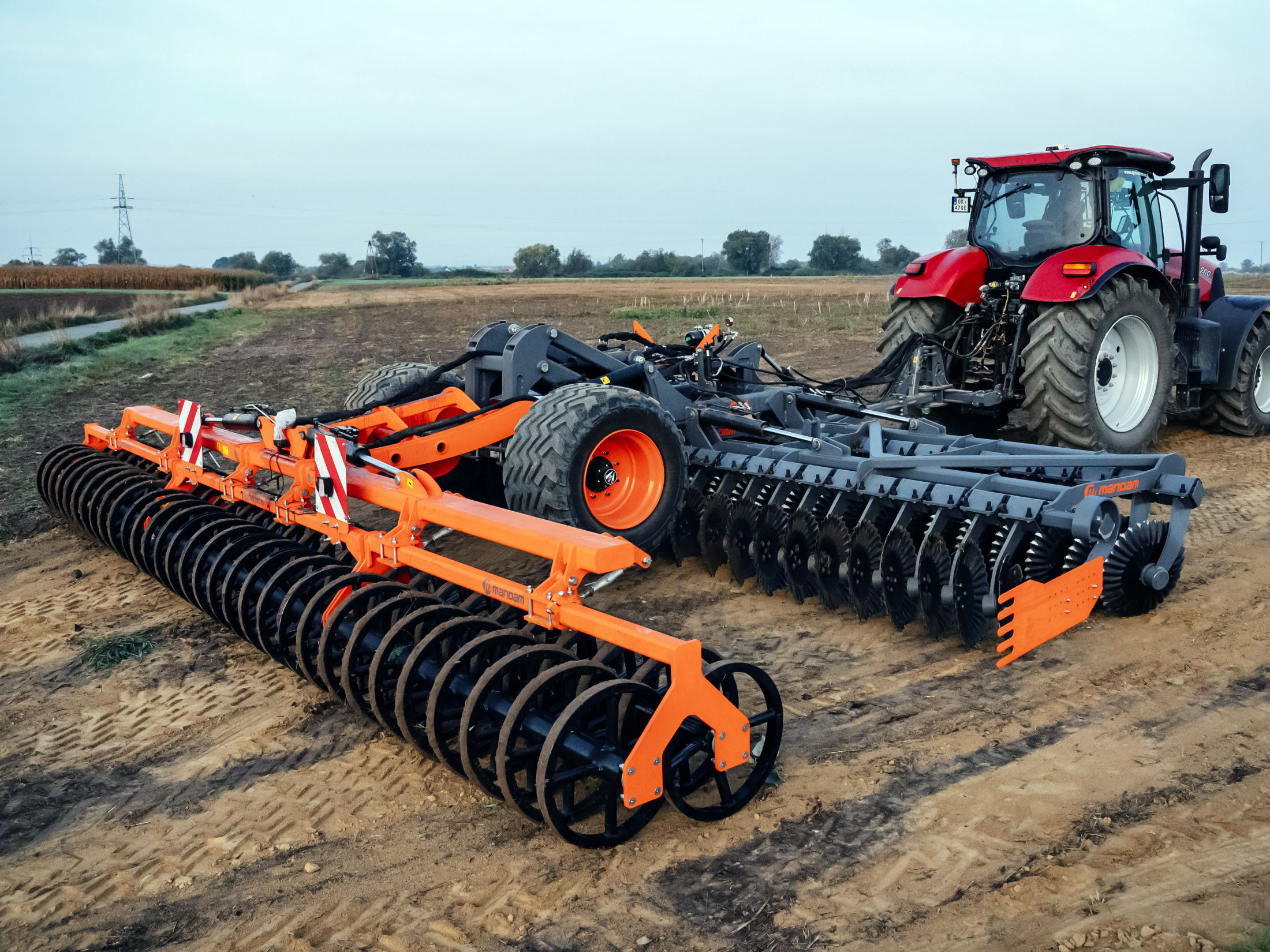

Disc Harrow GAL-K XL

ROLLERS ON INDIVIDUAL FRAME, WITH INDEPENDENT FOLDING MECHANISM

C-RING TANDEM ROLLER HD D=600 MM

REINFORCED FRAME

PROFIL 80X80X8

TWO HYDRAULIC CYLINDERS FOR EACH WING FRAME

MIDDLE FRAME MADE OF PROFILE 150X100X10

WHEELS 620/40 R 22,5

TRANSPORT CHASSIS WITH AXLE SUSPENSION

Disc Harrow GAL-K XL

  • Description

    GAL-K XL is our new model of trailed disc harrow, designed for middle power tractors. The unique feature of XL range is a three-section frame folding mechanism, while other MANDAM disc harrows fold in two. This provides compact transport size for machines up to 7,5m working width, with no need to use dedicated transport chassis, which is necessary for 8, 10 and 12m machines. Roller sections have an independent folding mechanism, bringing more balance to the entire structure. Disc row spacing is enlarged to 1000mm, which also improves working quality in harsh conditions. The hydraulic working depth control, chassis suspension and 620mm wide wheels are a standard equimpent. Maintenance free MANDAM hubs with 5-year warranty, together with variety of available discs, provide outstanding working efficiency. There are 10 different rollers to choose from, as well as many other accessories. This ensures great configuration abilities. Available in 5m and 7,5m working width.

  • Technical data

    #Typ
    mpcsmmmmHPkg
    5200GAL-K XL 5,0 H5,0
    +Rubber4010005601804100
    5225GAL-K XL 6,0 H6,0+Rubber4810005602204600
    5230GAL-K XL 7,5 H7,5+Rubber6010005602606500
  • Optional accesories
